Product Detail

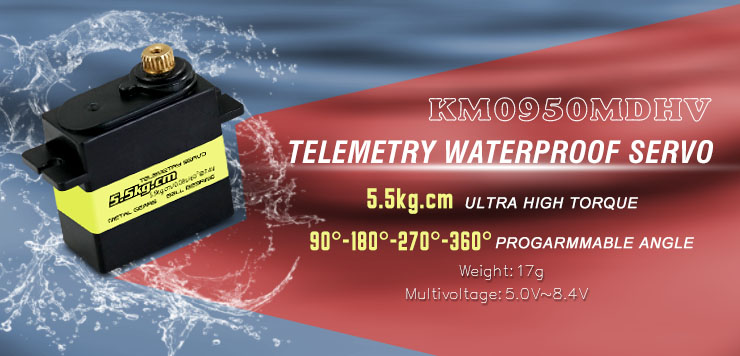

KM0950MDHV--17g 5.5kg,telemetry mini servo
Item: KM0950MDHV
Gear: Full metal
Spline: Exclusive
Motor: DC motor
Bearing: 1BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Working frequence: 1520μs/330hz
Detail

FEATURE:

-- High-precision metal gears,Programmable digital mini servo

-- High quality brushed motor

-- Install latest magnetic sensor positioner internally

-- Customized angles(such as 90°,180°,270°etc.)

-- Waterproof

--Suitable for   small sized helicopter and fixed wing aircraft, 3D airplane, F3A etc.

SPECIFICATIONS:

Operating Speed(5.0V): 0.12sec/60degrees

Operating Speed(6.0V): 0.10sec/60degrees

Operating Speed(7.4V): 0.08sec/60degrees

Operating Speed(8.4V): 0.07sec/60degrees

Stall Torque(5.0V): 4.2kg.cm(58.33oz/in)

Stall Torque(6.0V): 4.8kg.cm(66.67oz/in)

Stall Torque(7.4V): 5.5kg.cm(76.39oz/in)

Stall Torque(8.4V): 6.2kg.cm(86.11oz/in)

Size:25.3x13.2x25.1mm(0.99x0.51x0.98in)

Weight:17g(0.59oz)

Connector Wire Length:320mm(12.48in)

Optional Accessories:

KM0950MDHV-001:Offered accessaries

KM0950MDHV-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
