Product Detail
UAV01--77g 40kg,digital,full steel gears standard UAV servo,
Item: UAV01
Gear: Steel gear
Spline: 25T
Motor: Coreless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: No
Operating Voltage: DC5.0~8.4V
Working frequence: 1520μs/330hz
Detail

FEATURE:

-- High performance, digital multivoltage standard servo

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality coreless motor

-- Dual ball bearings

-- Super long working life

SPECIFICATIONS:

Operating Speed (5.0V): 0.21sec/60 degrees

Operating Speed (6.0V): 0.17sec/60 degrees

Operating Speed (7.4V): 0.14sec/60 degrees

Operating Speed (8.4V): 0.12sec/60 degrees

Stall Torque (5.0V): 29.0kg.cm(402.81oz/in)

Stall Torque (6.0V): 34.0kg.cm(472.26oz/in)

Stall Torque (7.4V): 40.0kg.cm(555.60oz/in)

Stall Torque (8.4V): 46.0kg.cm(638.94oz/in)

Dimensions: 40*20*37.3mm /1.56*0.78*1.45in

Weight: 77.7g(2.74oz)

Connector Wire Length: JR300 mm (1.17in)

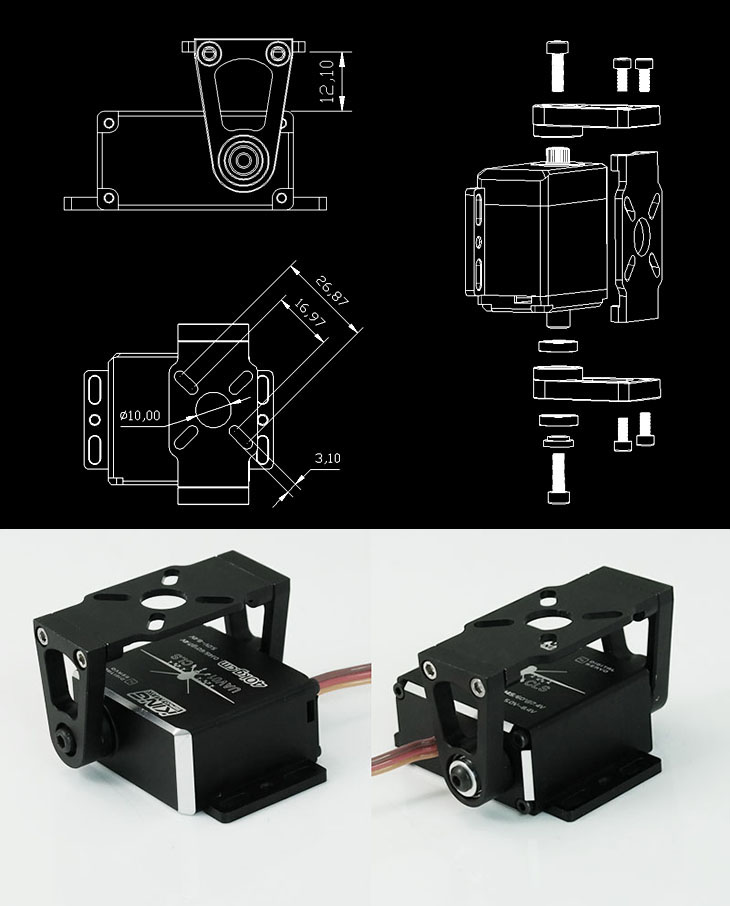

Optional Accessories:

UAV01-001:Offered accessaries

UAV01-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
