FEATURE:
-- High performance, digital multivoltage micro wing servo
-- High-precision metal gears
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- 6mm ultra-thin thickness
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(3.5V):0.23sec/60degrees
Operating Speed(5.0V):0.15sec/60degrees
Operating Speed(6.0V):0.13sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.08sec/60degrees
Stall torque(7.4V):4.2kg.cm(58.33oz/in)
Maximum working torque(7.4V):2.8kg.cm(38.89oz/in)
Rated working torque(3.5V):1.0kg.cm(13.89oz/in)
Rated working torque(5.0V):1.6kg.cm(22.22oz/in)
Rated working torque(6.0V):2.0kg.cm(27.78oz/in)
Rated working torque(7.4V):2.7kg.cm(37.50oz/in)
Rated working torque(8.4V):2.8kg.cm(38.89oz/in)

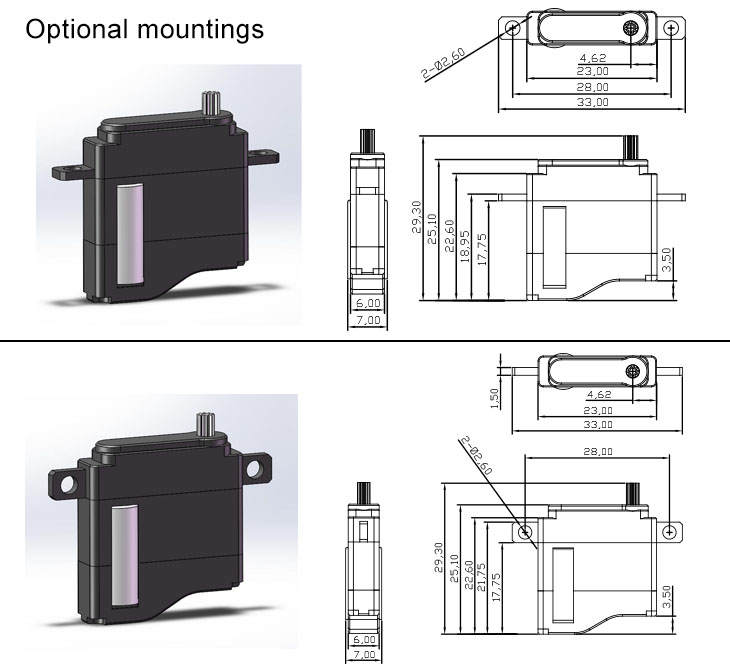

Dimensions:23*6*25mm /0.89X0.23X0.98in
Weight:9g(0.31oz)
Connector Wire Length:JR180mm(7.02in)

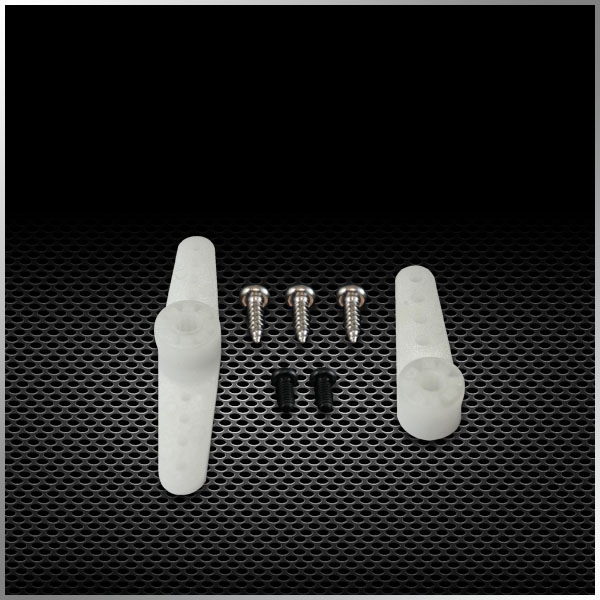

Optional Accessories:
C410-001:Offered accessories
C410-002:1set of gearset,including gears,shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
Centering test
