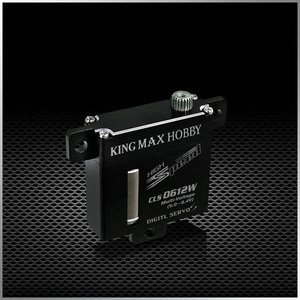

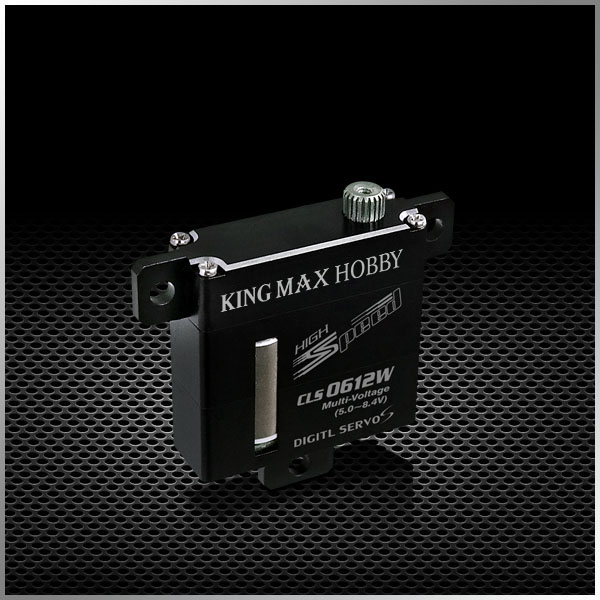

CLS0612W--23g 7kg.cm,digital wing servo
Item: CLS0612W
Gear: Full metal
Spline: Exclusive
Motor: Coreless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: No
Operating Voltage: DC5.0~8.4V
Working frequence: 1520μs/330hz
Detail

FEATURE:

-- High performance, digital high voltage wing servo

-- High-precision metal gears with hard anodizing

-- Full CNC aluminium hulls and structure

-- High quality coreless motor

-- Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.14sec/60 degrees

Operating Speed (6.0V): 0.12sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Operating Speed (8.4V): 0.09sec/60 degrees

Stall Torque (5.0V): 5.4kg.cm (75.01oz/in)

Stall Torque (6.0V): 6.2kg.cm (86.12oz/in)

Stall Torque (7.4V): 7.5kg.cm (104.18oz/in)

Stall Torque (8.4V): 8.5kg.cm (118.07oz/in)

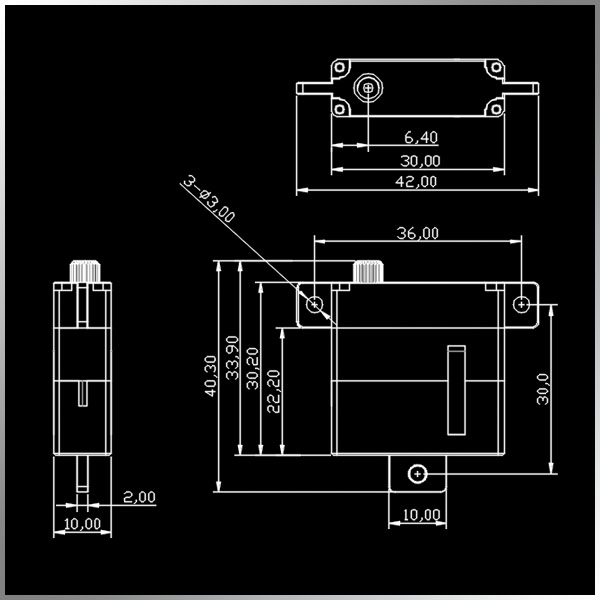

Dimensions: 30X10X30mm /1.17X0.39X1.17in

Weight: 23g (0.81oz)

Connector Wire Length: JR220 mm (8.58in)

Packing Detail:

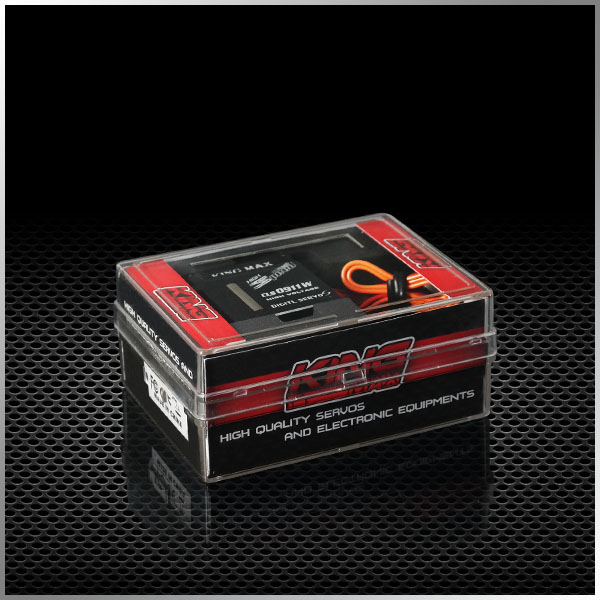

Transparency plastic box size: 83.5mmx63.5mmx37.5mm   weight: 69.8g

Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Cross weight:7.43kg

Optional Accessories:

CLS0612W-001:Offered accessaries

CLS0612W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)


CLS0612W Life testing
