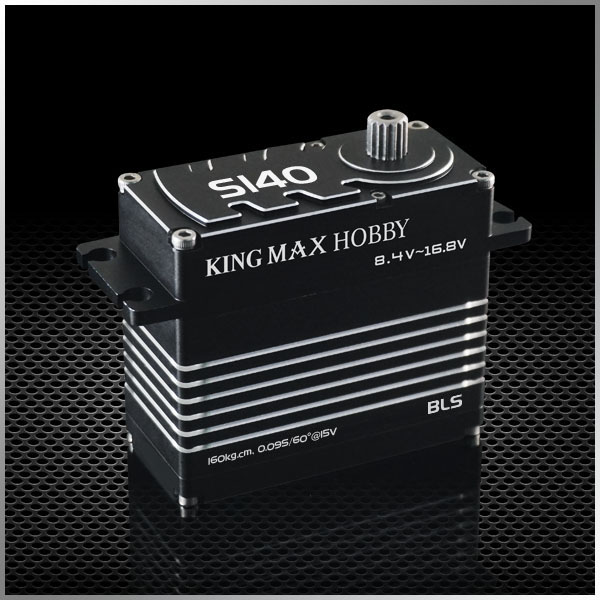

FEATURE:
-- High performance, digital multivoltage high torque servo

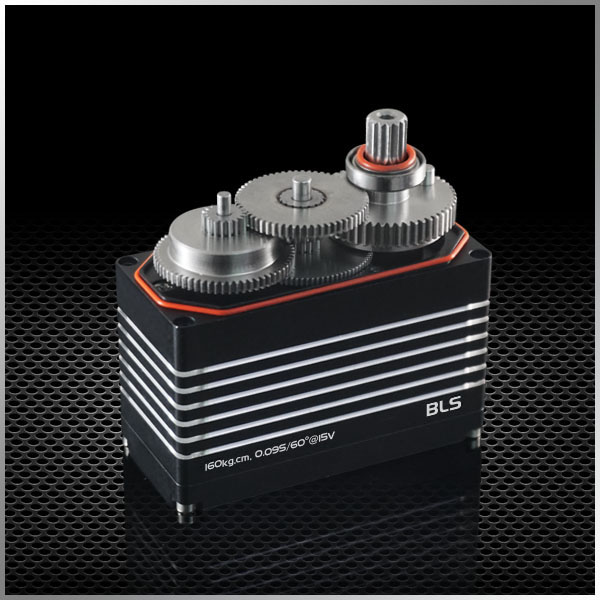

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long working life
SPECIFICATIONS:
Operating Speed(8.4V):0.16sec/60degrees
Operating Speed(12V):0.11sec/60degrees
Operating Speed(15V):0.09sec/60degrees
Operating Speed(16.8V):0.08sec/60degrees
Stall torque(15V):160kg.cm(2222.40oz/in)
Maximum working torque(15V):108kg.cm(1500.12oz/in)
Rated working torque(8.4V):37.0kg.cm(513.93oz/in)
Rated working torque(12V):42.3kg.cm(587.55oz/in)
Rated working torque(15V):51.0kg.cm(708.39oz/in)
Rated working torque(16.8V):56.0kg.cm(777.84oz/in)

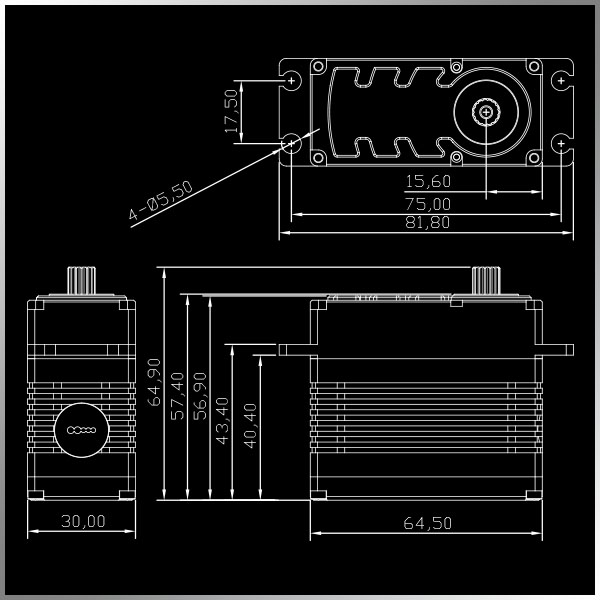

Dimensions(L*W*H):64*30*57mm/2.49X1.17X2.22in
Weight:288g(10.16oz)

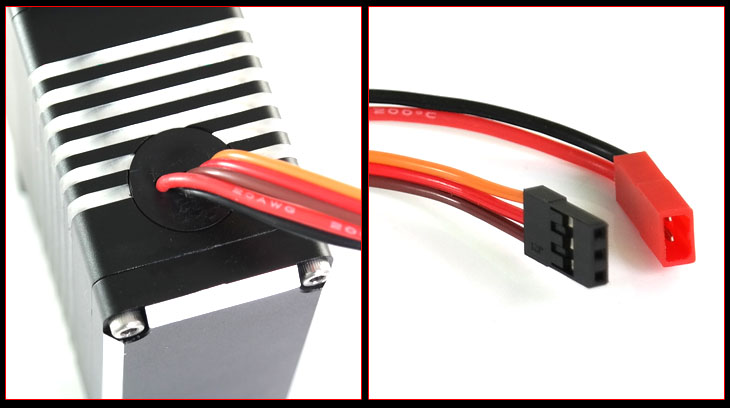

Connector Wire Length:JR280mm(10.92in)

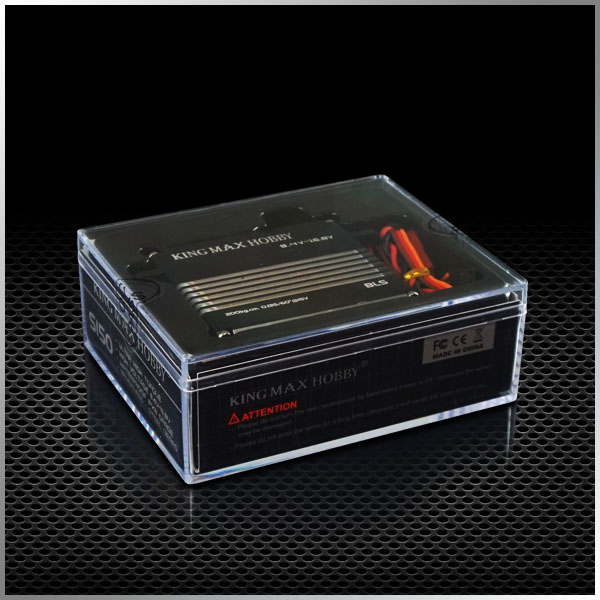

Packing Detail:
Transparency plastic box size: 180x110x45mm weight: 488g
Optional Accessories:

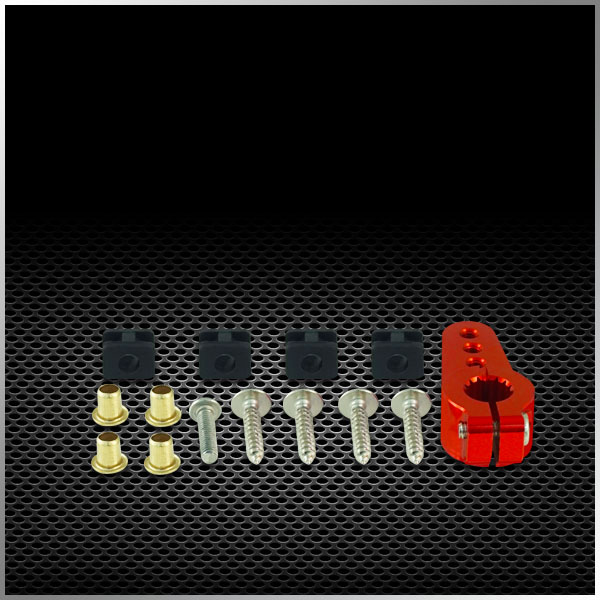

S140-001:Offered accessaries
S140-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
