FEATURE:
-High performance, standard,Multivoltage digital servo
-High-precision 7075 aluminium gear
-Long-life potentiometer
-Full CNC aluminium case
-High quality coreless motor
-Dual ball bearing
-Waterproof
- Suit for 1/8，1/10 fuel car，600-700 class helicopter CCPM
SPECIFICATIONS:
Operating Speed (5.0V): 0.09sec/60 degrees
Operating Speed (6.0V): 0.07sec/60 degrees
Operating Speed (7.4V): 0.06sec/60 degrees
Operating Speed (8.4V): 0.05sec/60 degrees
Stall Torque (5.0V): 12kg.cm (166.68oz/in)
Stall Torque (6.0V): 14.2kg.cm (197.24oz/in)
Stall Torque (7.4V): 16kg.cm (222.24oz/in)
Stall Torque (8.4V): 18.5kg.cm (256.97oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:71g (2.5oz)
Connector Wire Length:300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 120g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12.5kg
Optional Accessories:

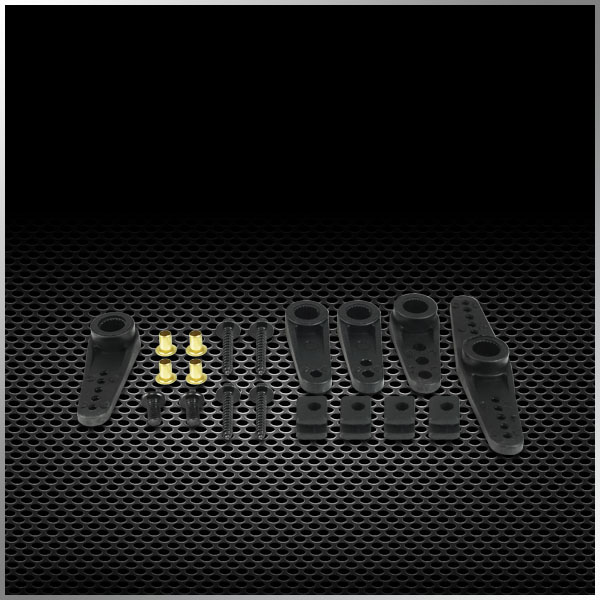

CLS1606S-001:Offered accessories
CLS1606S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
