FEATURE:

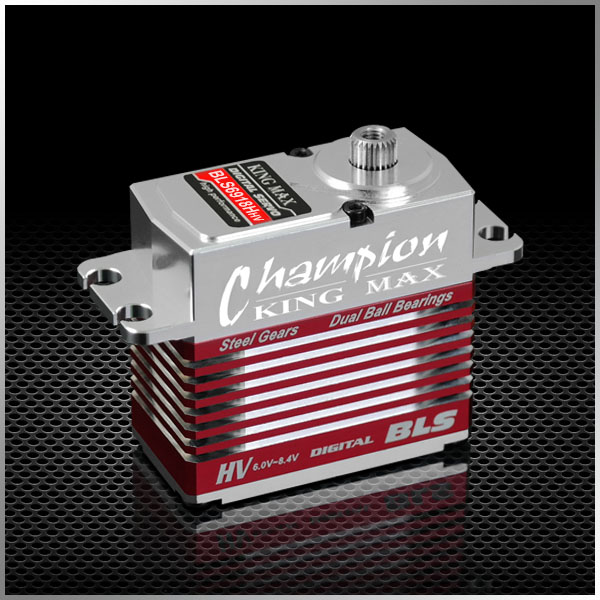

-- High performance programmable digital high voltage standard servo
-- High-precision Taiwan-made steel gears
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Waterproof
-- Ideal for 700 class helicopter swashplate
SPECIFICATIONS:
Operating Speed (6.0V): 0.08sec/60 degrees
Operating Speed (7.4V): 0.07sec/60 degrees
Operating Speed (8.4V): 0.06sec/60 degrees
Stall Torque (6.0V): 15.33kg.cm (212.93oz/in)
Stall Torque (7.4V): 18.85kg.cm (261.83oz/in)
Stall Torque (8.4V): 21.4kg.cm (297.25oz/in)
Dimensions: 40X20X39.5mm /1.57X0.79X1.56 in
Weight: 77.5g (2.45oz)
Connector Wire Length: JR320 mm (12.6in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 133g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.8kg
Optional Accessories:
BLS6918HHV-001:Offered accessories
BLS6918HHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
