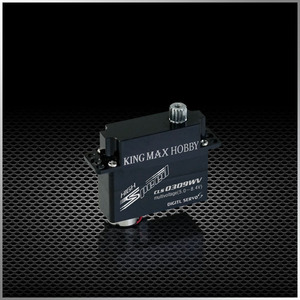

FEATURE:
-- High performance,micro digital wing servo
-- High precision matal gears(copper+titanium)
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- 8mm ultra-thin thickness
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(3.5V):0.16sec/60degrees
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall Torque(3.5V):2.0kg.cm(27.78oz/in)
Stall Torque(5.0V):3.0kg.cm(41.67oz/in)
Stall Torque(6.0V):4.0kg.cm(55.56oz/in)
Stall Torque(7.4V):4.5kg.cm(62.50oz/in)
Stall Torque(8.4V):5.0kg.cm(69.45oz/in)

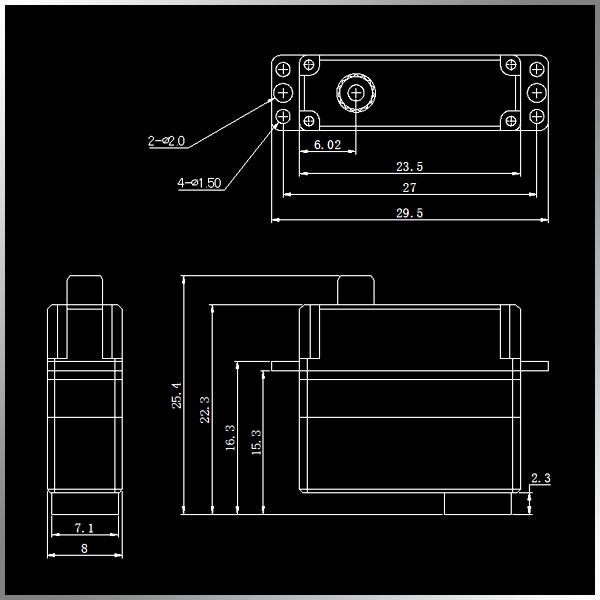

Size:23.5x8x20mm(0.92x0.31x0.78in)
Weight:8.6g(0.30oz)
Connector Wire Length: 120mm(4.68in)
Optional Accessories:

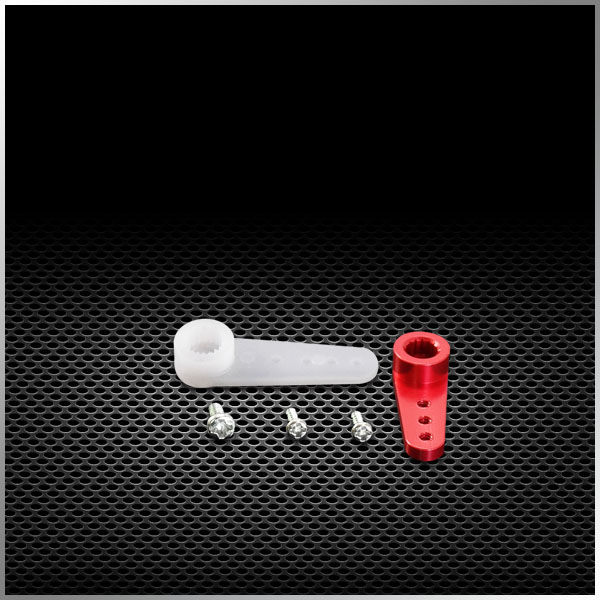

CLS0309W-001:Offered accessories
CLS0309W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
