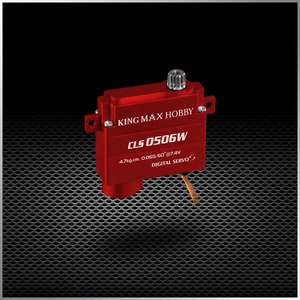

FEATURE:
-- High performance digital wing servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Super long life
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.06sec/60degrees
Operating Speed(8.4V):0.058sec/60degrees
Stall torque(7.4V):4.7kg.cm(65.28oz/in)
Maximum working torque(7.4V):2.6kg.cm(36.11oz/in)
Rated working torque(5.0V):1.0kg.cm(13.89oz/in)
Rated working torque(6.0V):1.3kg.cm(18.05oz/in)
Rated working torque(7.4V):1.7kg.cm(23.61oz/in)
Rated working torque(8.4V):1.9kg.cm(26.39oz/in)

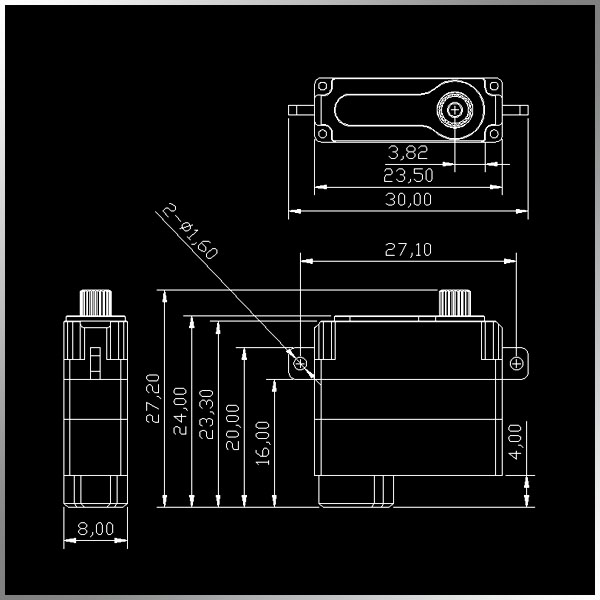

Dimensions:23.5*8*20mm/0.91X0.31X0.78in
Weight:9.8g(0.38oz)
Connector Wire Length:JR100mm(3.90in)
Optional Accessories:
CLS0506W-001:Offered accessories
CLS0506W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
