FEATURE:
-- Programmable high performance micro digital servo
-- High quality coreless motor
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):3.0kg.cm(41.67oz/in)
Maximum working torque(7.4V):2.0kg.cm(27.78oz/in)
Rated working torque(5.0V):0.7kg.cm(9.72oz/in)
Rated working torque(6.0V):0.9kg.cm(12.50oz/in)
Rated working torque(7.4V):1.3kg.cm(18.05oz/in)
Rated working torque(8.4V):1.5kg.cm(20.83oz/in)

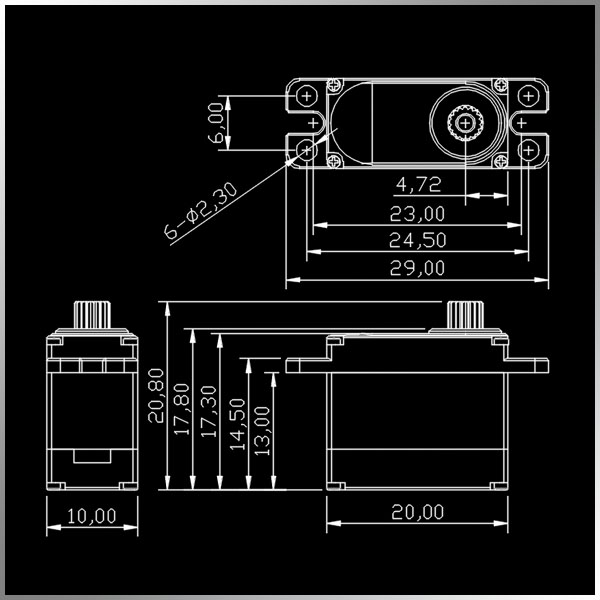

Dimensions:20*10*17.3mm/0.78X0.39X0.34in
Weight:10g(0.35oz)
Connector Wire Length:JR180mm(7.02in)
Packing Detail:
Transparent plastic box size:83.5mmx63.5mmx37.5mm weight:20g
Carton box size:43x26.5x20.5cm 100sets/1CTN Gross weight:2.5kg
Optional Accessories:

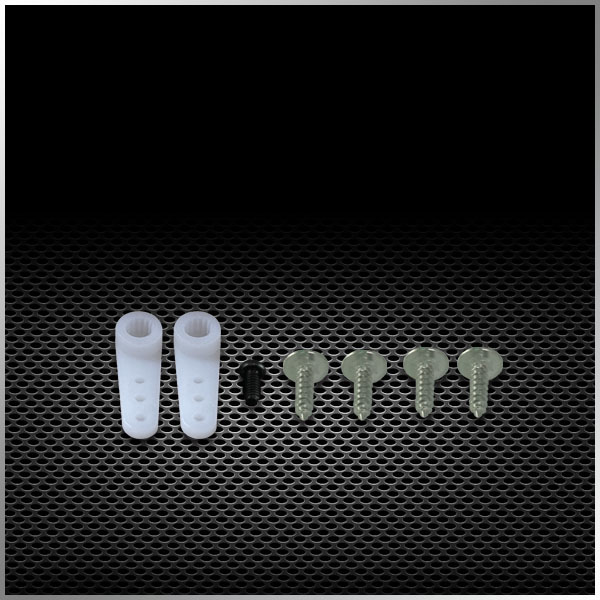

CLS0207M-001:Offered accessories
CLS0207M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
