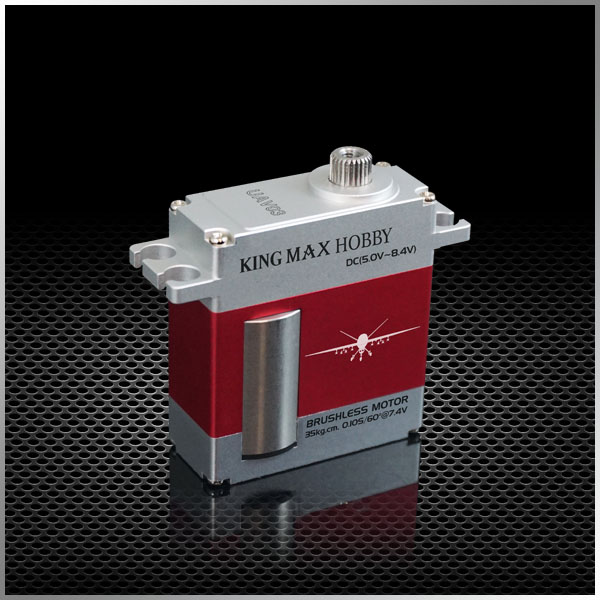

FEATURE:
-- High performance digital mini servo
-- High-precision steel gear
-- Anti- interference free
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed (5.0V): 0.16sec/60 degrees
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (5.0V): 25kg.cm (347.25oz/in)
Stall Torque (6.0V): 30kg.cm (416.70oz/in)
Stall Torque (7.4V): 35kg.cm (486.15oz/in)
Stall Torque (8.4V): 40kg.cm (555.60oz/in)
Dimensions: 35.5*15*41mm /1.38*0.58*1.59in
Weight: 65.5g(2.31oz)
Connector Wire Length: JR300 mm (1.17in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 85g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:10kg
Optional Accessories:

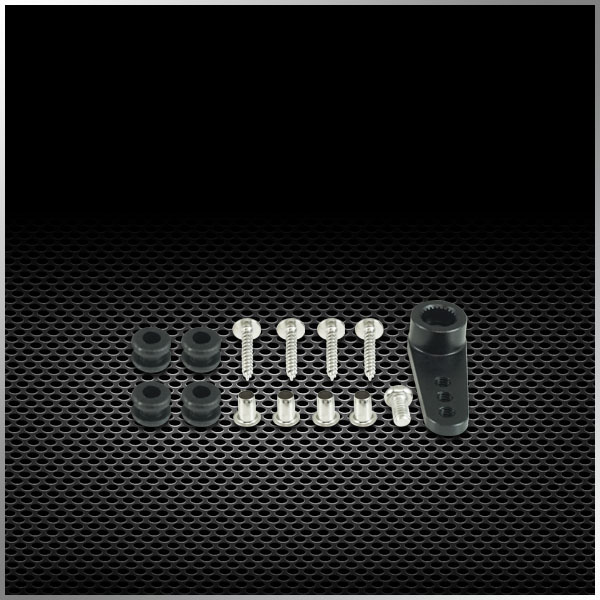

UAV03-001:Offered accessories
UAV03-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
