PATENT PRODUCTS
COUNTERFEITING WILL BE HELD LIABLE
PETENT NO. ZL201822045200.5

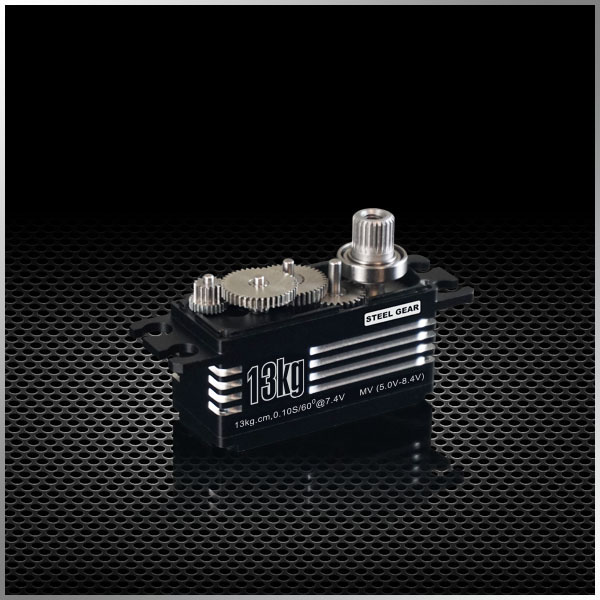

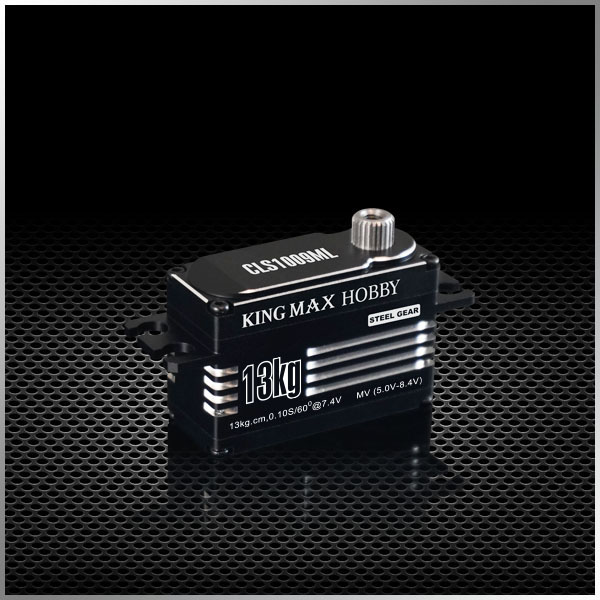

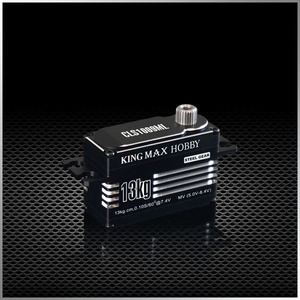

FEATURE:
-- High performance, digital Multivoltage mini servo
-- Patent gear chain design,more stable and durable
-- High Precision Helical Gears Structure
-- High-precision metal gears with hard anodizing
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.14sec/60degrees
Operating Speed(6.0V):0.12sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):13kg.cm(180.57oz/in)
Maximum working torque(7.4V):7.0kg.cm(97.23oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.3kg.cm(45.83oz/in)
Rated working torque(7.4V):5.0kg.cm(69.45oz/in)
Rated working torque(8.4V):5.2kg.cm(72.22oz/in)
Dimensions: 35.5*15*23.6mm /1.38*0.58*0.92in
Weight: 34g(1.19oz)
Connector Wire Length: JR320 mm (12.48in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 70g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight: 7.5kg
Optional Accessories:
CLS1009ML-001:Offered accessories
CLS1009ML-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
