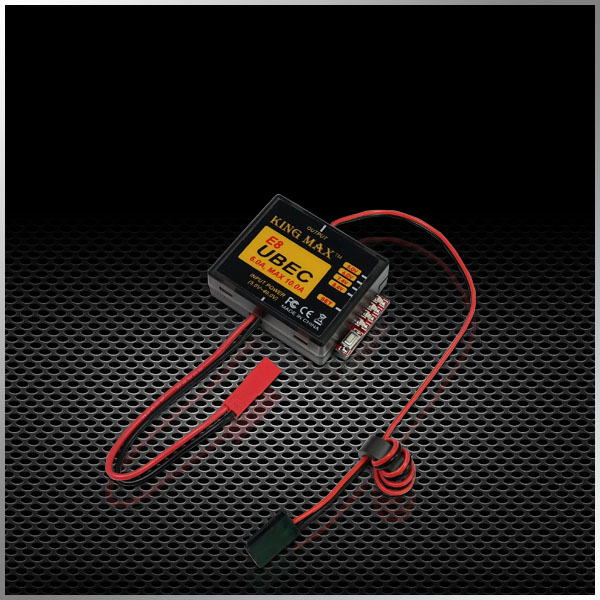

E8 KINGMAX HV 5.0V~8.4V OUTPUT UBEC

Specification：
Output Voltage: 5.0V/6.0V/7.4V/8.4V selectable
Continuous output current: 6 Amps
Burst output current: 10 Amps
Input: 9.0V-40V
Quiescent current: 15mA
Size: 47.6mm*36mm*15.3mm (L*W*H)
Weight: 28.5g
Features：
--Designed with an advanced switch mode DC-DC regulator IC, the max efficiency of the chip is up to 92%.
-- With the output short-circuit protection function.
-- Beautiful plastic case, reduce the electromagnetic interference.
--Safe power on with the polarity protection function. If the input polarity is not correct, the UBEC can't work,

  but it will not be damaged. What you need to do is just swapping the battery pack's polarity.

--Shows the working status with an indicator (LED), lights when the output is in normal range.

Packing Detail:
Blister size: 145mmx90mmx24mm   weight: 48g
