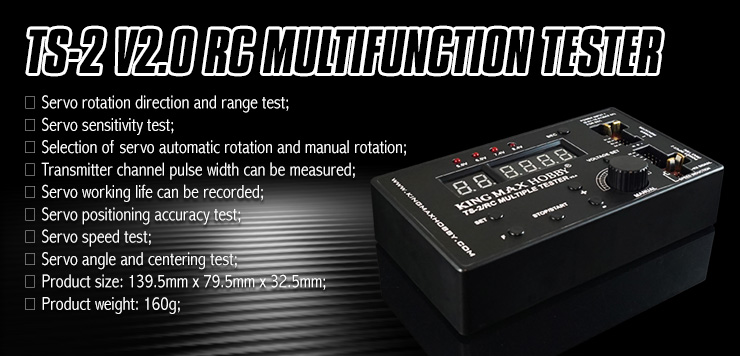

PRODUCT FUNCTION：
1、Servo rotation direction and range test;
2、Servo sensitivity test;
3、Selection of servo automatic rotation and manual rotation;
4、Transmitter channel pulse width can be measured;
5、Servo working life can be recorded;
6、Servo positioning accuracy test;
7、Servo speed test;
8、Servo angle and centering test;
FEATURE:

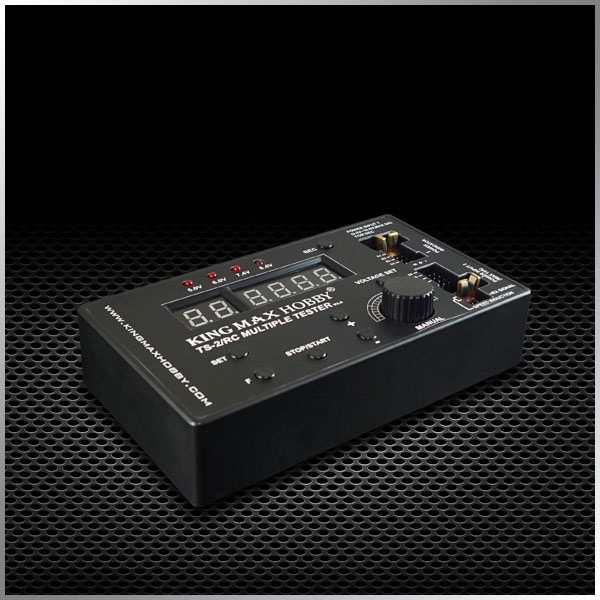

1、6-digit red ultra-high brightness LED digital display;
2、Input voltage range entry 1: 9V~16.8V (supports 3S~4S), entry 2: any voltage;
3、With high current BEC step-down, output current up to 8A;
4、Optional BEC output voltage, 5V 6V 7.4V 8.4V four voltage options.
5、Up to 1us signal measurement and output accuracy.
6、Flexible and adjustable signal pulse width. There are four modes for the servo signal output range, 0.51.0 1.0~2.0 0.5~2.5 custom range(adjustable between 0.5~2.5), and the four modes can be selected by pressing the SET button when the power is turned on.
SPECIFICATION:
Size: 139.5mm x 79.5mm x 32.5mm
Product weight: 160g
Optional Accessories:

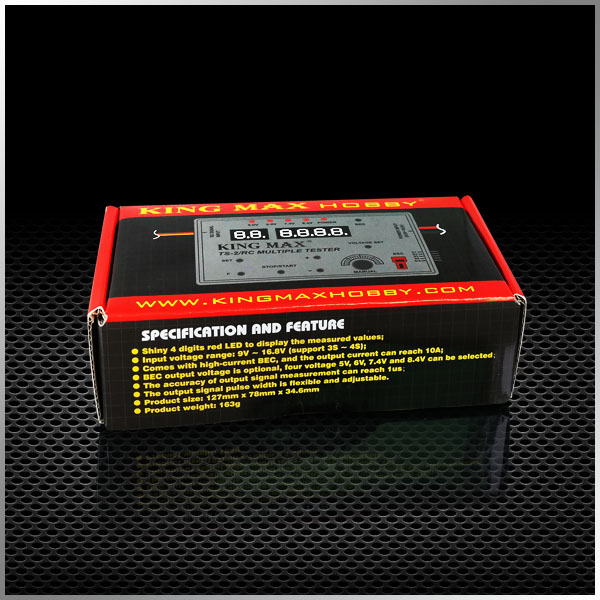

Carton Box Size:151x90x45mm weight: 261g
