FEATURE:
-- High performance, digital high voltage wing servo
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
--8.5mm ultra-thin thickness
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.15sec/60degrees
Operating Speed(6.0V):0.13sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):8.00kg.cm(111.12oz/in)
Maximum working torque(7.4V):5.5kg.cm(76.39oz/in)
Rated working torque(5.0V):2.0kg.cm(27.78oz/in)
Rated working torque(6.0V):2.5kg.cm(34.72oz/in)
Rated working torque(7.4V):3.0kg.cm(41.67oz/in)
Rated working torque(8.4V):3.5kg.cm(48.61oz/in)

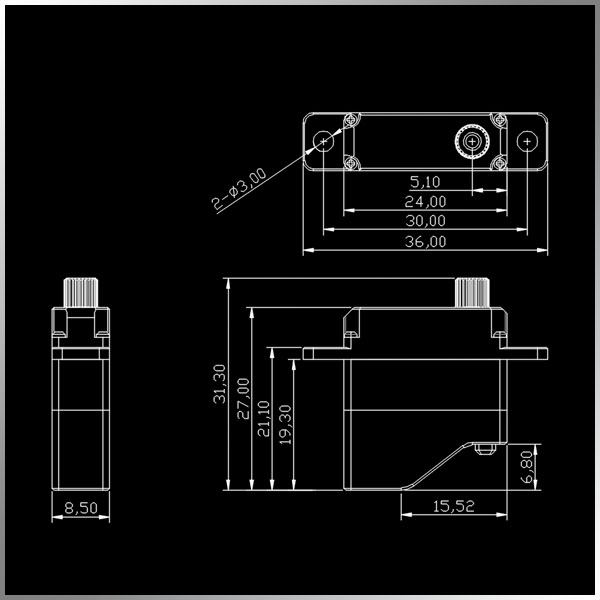

Dimensions:24*8.5*27mm/0.93X0.33X1.05in
Weight:14g(0.49oz)
Connector Wire Length:JR160mm(6.24in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 31g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:3.55kg

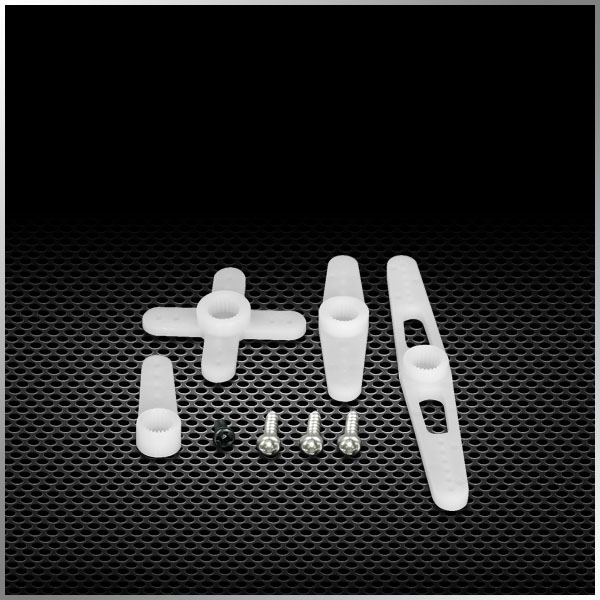

Optional Accessories:
CLS0810WV-001:Offered accessories
CLS0810WV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
