FEATURE:
-- High performance, digital multivoltage high torque servo

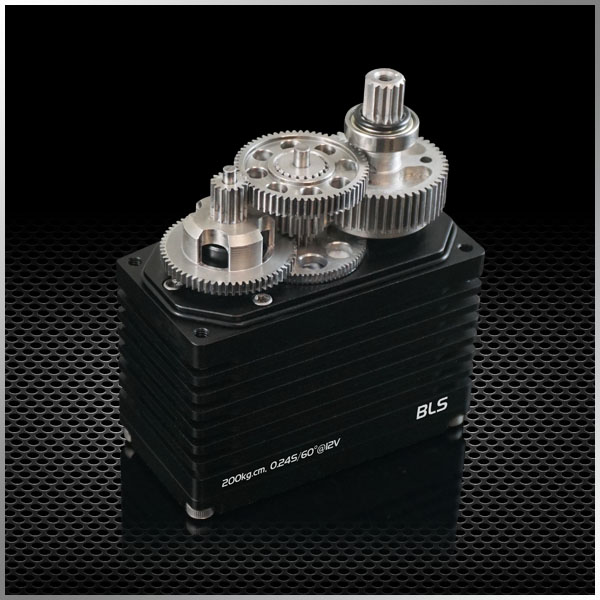

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long working life
-- Waterproof IPX8 grade
-- CAN Protocol & PWM Signal Compatible
SPECIFICATIONS:
Operating Speed(7.4V):0.39sec/60degrees
Operating Speed(8.4V):0.35sec/60degrees
Operating Speed(12V):0.24sec/60degrees
Stall torque(12V):200kg.cm(2778.00oz/in)
Maximum working torque(12V):145kg.cm(2014.05oz/in)
Rated working torque(7.4V):50.0kg.cm(694.5oz/in)
Rated working torque(8.4V):60.0kg.cm(833.4oz/in)
Rated working torque(12V):78.0kg.cm(1083.42oz/in)

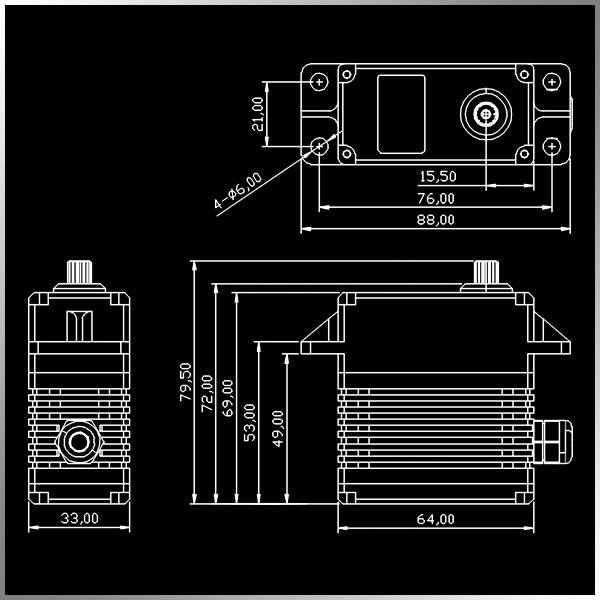

Dimensions:64*33*69mm/2.49X1.28X2.69in
Weight:383g(13.51oz)

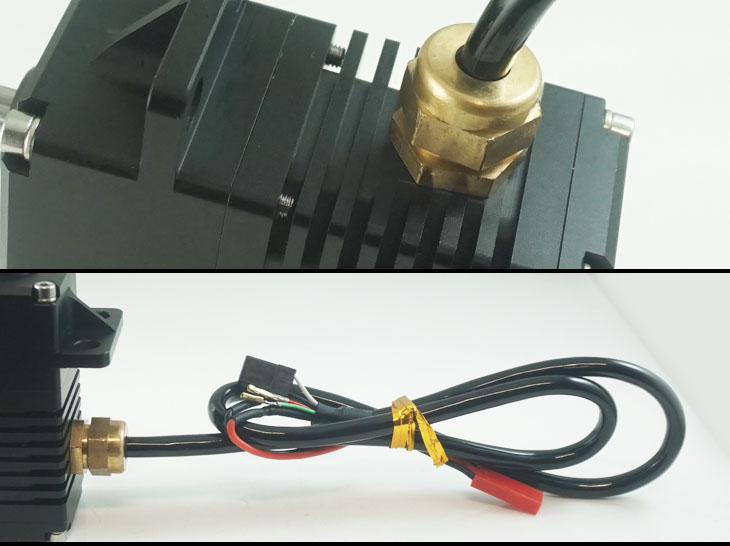

Connector Wire Length:Teflon 550mm(21.45in)
Optional Accessories:
BLS20024-001:Offered accessories
BLS20024-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
