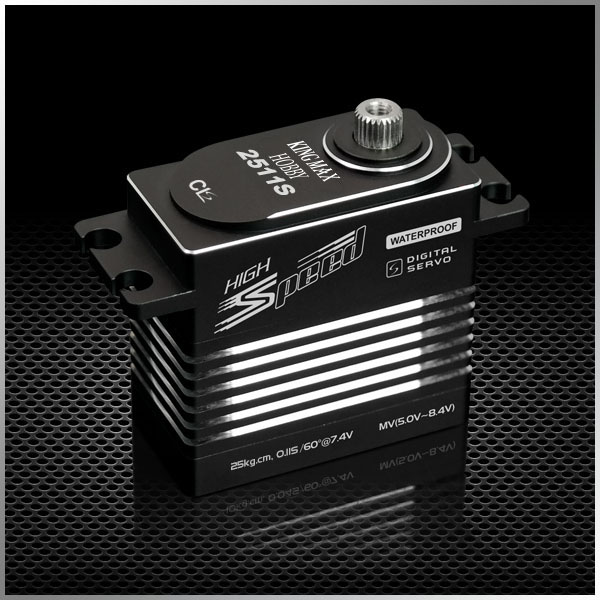

FEATURE:
-High performance, standard,Multivoltage digital servo
-High-precision steel gear
-Long-life potentiometer
-Full CNC aluminium case
-High quality coreless motor
-Dual ball bearing
-Waterproof
-Suit for 28-50CC gas engine, 1/5 car
SPECIFICATIONS:
Operating Speed (5.0V): 0.15sec/60 degrees
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.11sec/60 degrees
Operating Speed (8.4V): 0.10sec/60 degrees
Stall Torque (5.0V): 20.2kg.cm (280.57oz/in)
Stall Torque (6.0V): 22.3kg.cm (309.75oz/in)
Stall Torque (7.4V): 25kg.cm (347.25oz/in)
Stall Torque (8.4V): 28.5kg.cm (395.87oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:80g (2.82oz)
Connector Wire Length:300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 127g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.2kg
Optional Accessories:
CLS2511S-001:Offered accessories

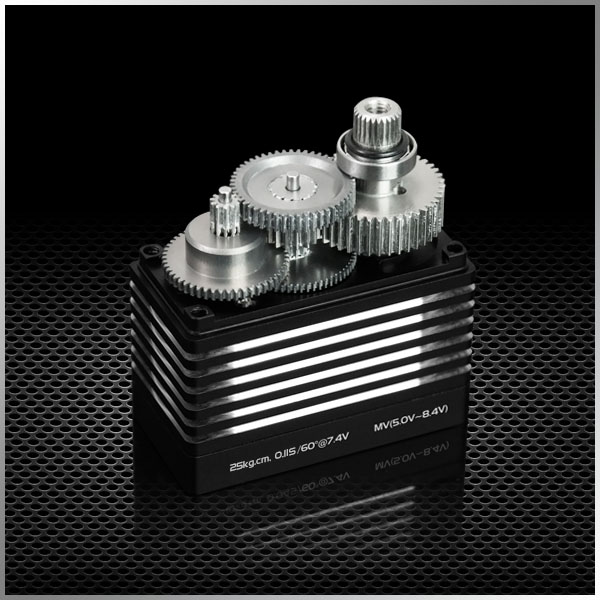

CLS2511S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
