FEATURE:
-High performance, standard,Multivoltage digital servo

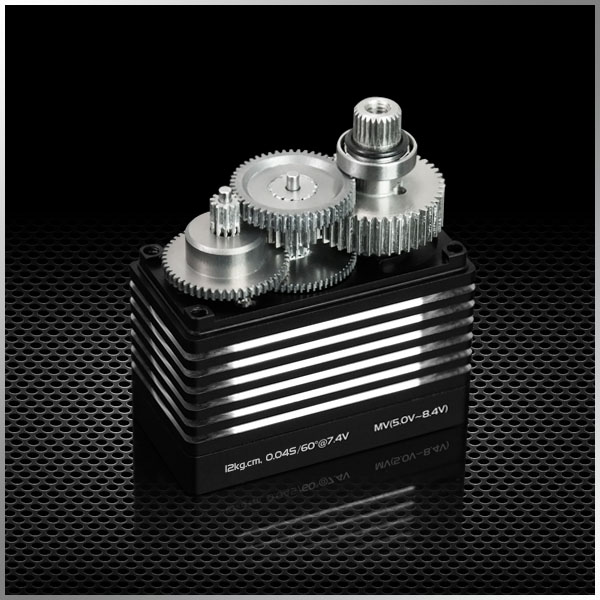

-High-precision full steel gears
-Long-life potentiometer
-Full CNC aluminium case
-High quality brushless motor
-Dual ball bearing
-Waterproof
-Suit for 600-800 class helicopter tail
SPECIFICATIONS:
Operating Speed (5.0V): 0.07sec/60 degrees
Operating Speed (6.0V): 0.05sec/60 degrees
Operating Speed (7.4V): 0.04sec/60 degrees
Operating Speed (8.4V): 0.03sec/60 degrees
Stall Torque (5.0V): 8.7kg.cm (120.84oz/in)
Stall Torque (6.0V): 10.8kg.cm (150.01oz/in)
Stall Torque (7.4V): 12kg.cm (166.68oz/in)
Stall Torque (8.4V): 14kg.cm (194.46oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:69g (2.43oz)
Connector Wire Length: 300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 121g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12.6kg
Optional Accessories:
BLS1204S-001:Offered accessories
BLS1204S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
