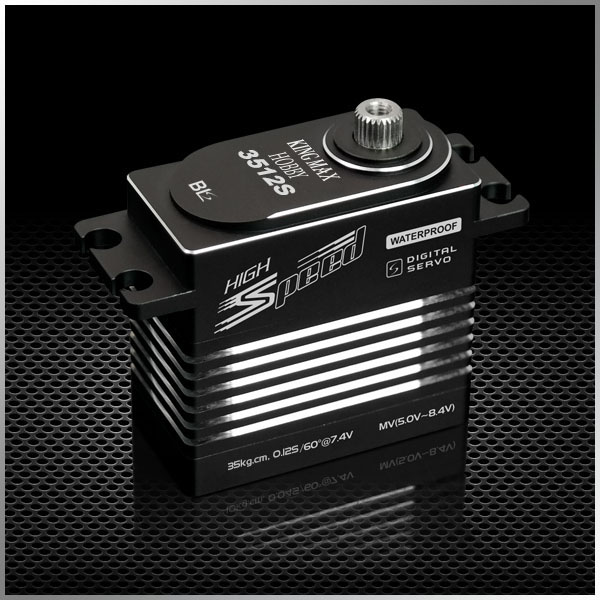

FEATURE:
-High performance, standard,Multivoltage digital servo
-High-precision steel gear
-Long-life potentiometer
-Full CNC aluminium case
-High quality brushless motor
-Dual ball bearing
-Waterproof
-Suit for 50-150CC gas engine, 1/5 car
SPECIFICATIONS:
Operating Speed (5.0V): 0.16sec/60 degrees
Operating Speed (6.0V): 0.14sec/60 degrees
Operating Speed (7.4V): 0.12sec/60 degrees
Operating Speed (8.4V): 0.11sec/60 degrees
Stall Torque (5.0V): 29.1kg.cm (404.19oz/in)
Stall Torque (6.0V): 31.2kg.cm (433.37oz/in)
Stall Torque (7.4V): 35kg.cm (486.15oz/in)
Stall Torque (8.4V): 39kg.cm (541.71oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:78g (2.75oz)
Connector Wire Length: 300mm (11.8in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 130g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.5kg
Optional Accessories:
BLS3512S-001:Offered accessories

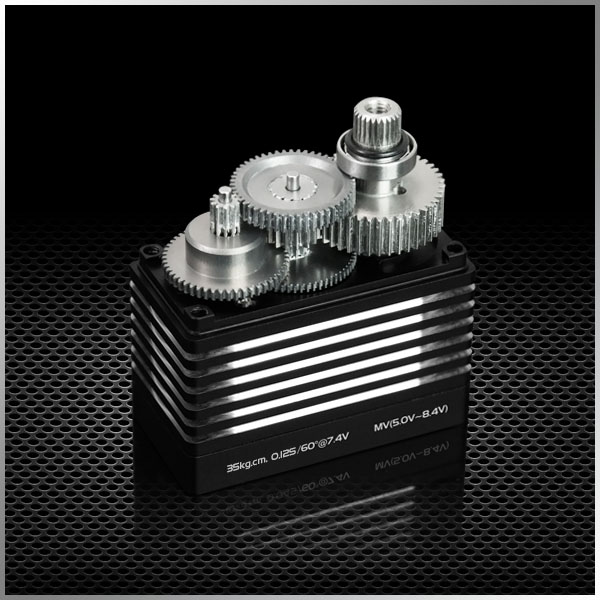

BLS3512S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
