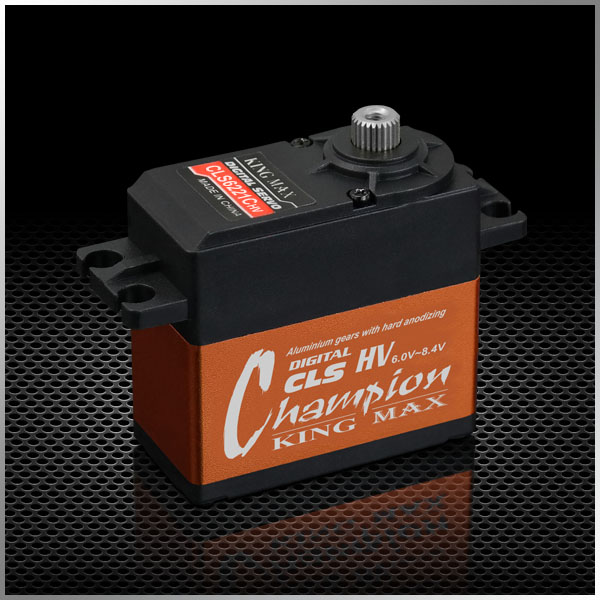

FEATURE:
-- High performance programmable digital high voltage standard servo

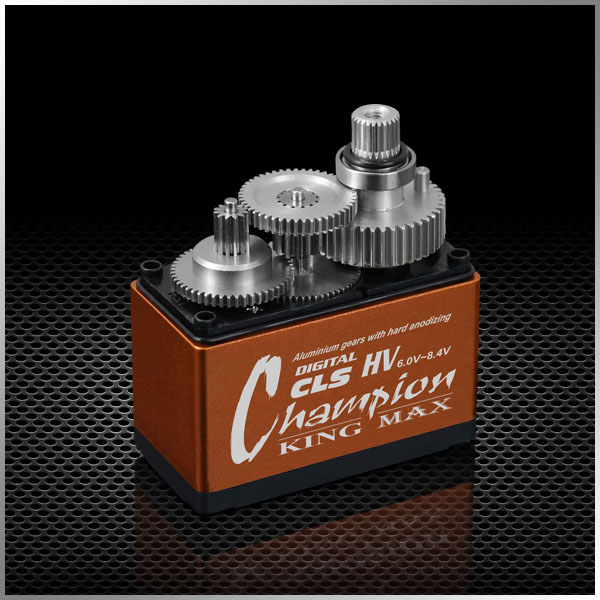

-- High-precision Taiwan-made aluminium gears with hard anodizing
-- High quality coreless motor
-- Middle CNC aluminium case
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (6.0V): 17.21kg.cm (239.05oz/in)
Stall Torque (7.4V): 21.22kg.cm (294.75oz/in)
Stall Torque (8.4V): 24.0kg.cm (333.36oz/in)

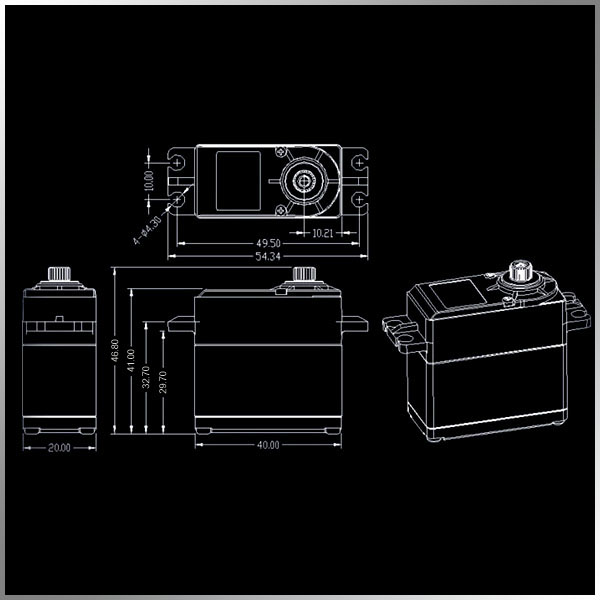

Dimensions: 40.2X20X41mm /1.58X0.79X1.61 in
Weight: 62g (2.19oz)
Connector Wire Length: JR320 mm (12.6in)
Packing Detail:

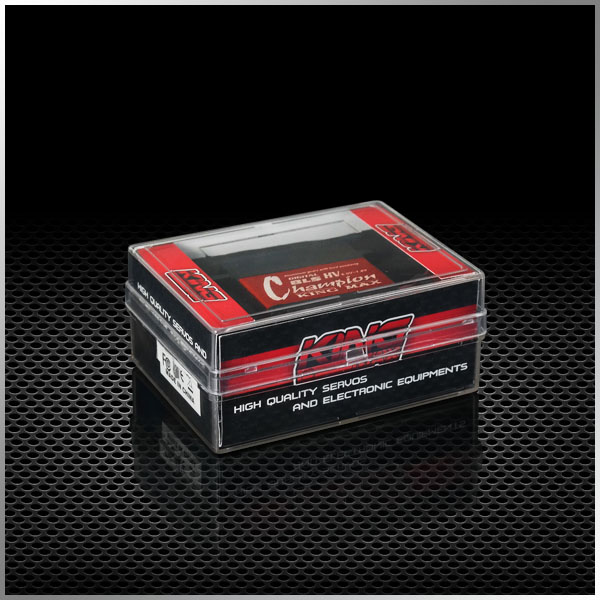

Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 115g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12kg
Optional Accessories:
CLS6221CHV-001:Offered accessories
CLS6221CHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
