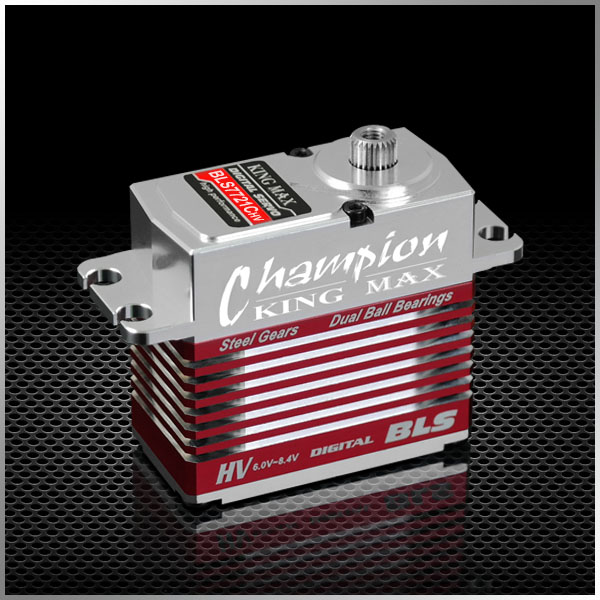

FEATURE:
-- High performance programmable digital high voltage standard servo
-- High-precision Taiwan-made steel gears
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (6.0V): 0.10sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (6.0V): 19.5 kg.cm (270.86oz/in)
Stall Torque (7.4V): 23.5 kg.cm (326.42oz/in)
Stall Torque (8.4V): 26.5 kg.cm (368.09oz/in)
Dimensions: 40X20X39.5mm /1.57X0.79X1.56 in
Weight: 77.5g (2.73oz)
Connector Wire Length: JR320 mm (12.6in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 128g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.3kg
Optional Accessories:
BLS7721CHV-001:Offered accessories
BLS7721CHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
