FEATURE:

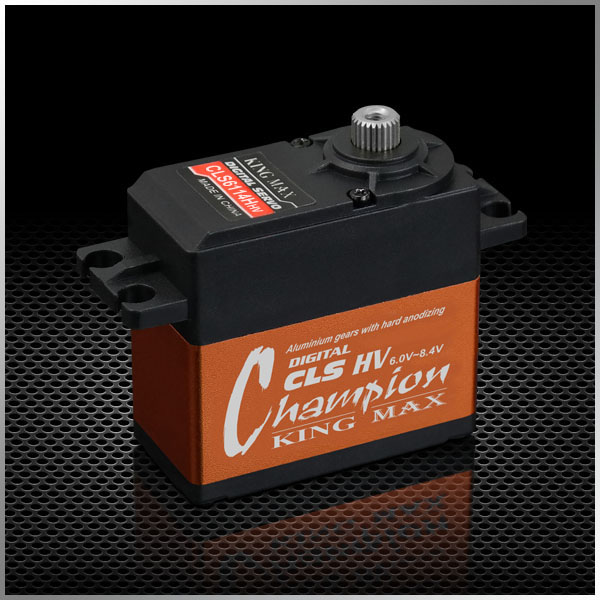

-- High performance programmable digital high voltage standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- High quality coreless motor
-- Middle CNC aluminium case
-- Dual ball bearings
-- Waterproof
-- Ideal for 550-600 class heli swashplate
SPECIFICATIONS:
Operating Speed (6.0V): 0.09sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (6.0V): 15.5kg.cm (215.3oz/in)
Stall Torque (7.4V): 18.6kg.cm (258.35oz/in)
Stall Torque (8.4V): 20.3kg.cm (281.97oz/in)
Dimensions: 40.2X20X38mm /1.58X0.79X1.5in
Weight: 61g (2.15oz)
Connector Wire Length: JR320 mm (12.6in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 115g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12kg
Optional Accessories:
CLS6114HHV-001:Offered accessories
CLS6114HHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
