FEATURE:

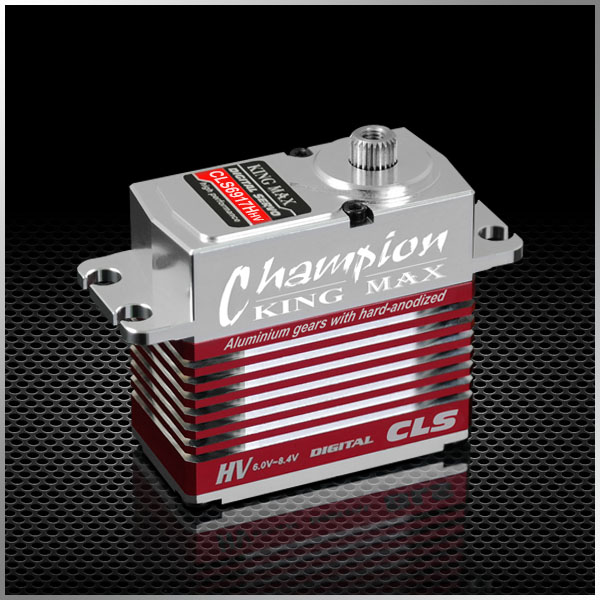

-- High performance programmable digital high voltage standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Waterproof
-- Ideal for 700 class helicopter swashplate
SPECIFICATIONS:
Operating Speed (6.0V): 0.11sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (6.0V): 13.99 kg.cm (194.32oz/in)
Stall Torque (7.4V): 17.25kg.cm (239.6oz/in)
Stall Torque (8.4V): 19.58kg.cm (271.97oz/in)
Dimensions: 40X20X39.5mm /1.57X0.79X1.56 in
Weight: 69.5g (2.45oz)
Connector Wire Length: JR320 mm (12.6in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 125g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13kg
Optional Accessories:
CLS6917HHV-001:Offered accessories
CLS6917HHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
