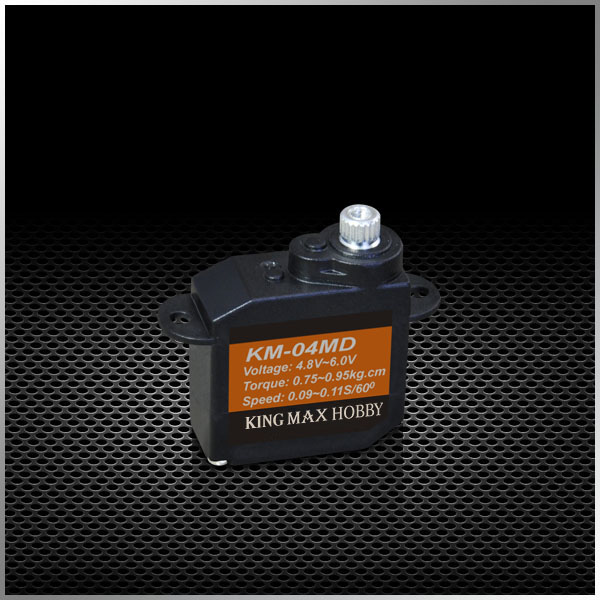

EATURE:
--The first practical micro servo
--High-precision metal gears for smooth action and durability
--Tiny gear clearance
--Good for CCPM
--Coreless motor
--Mature circuit design scheme,quality motors and electronic components makes the servo stable,accurate and reliable
SPECIFICATIONS:
Control System: +Pulse Width Control
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8V): 0.11sec/60 degrees at no load
Operating Speed (6.0V): 0.09sec/60 degrees at no load
Stall Torque (4.8V): 0.75kg.cm (10.42 oz/in)
Stall Torque (6.0V): 0.95kg.cm (13.20 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 20x8.5x19.8mm/0.78 x0.33x0.77in
Weight: 5.5g (0.19oz)
Connector Wire Length: JR185 mm (7.21in)
Optional Accessories:
KM-04MD-001:Offered accessories
KM-04MD-002:1set of gearset, including gears, shafts(not include motor gear)
