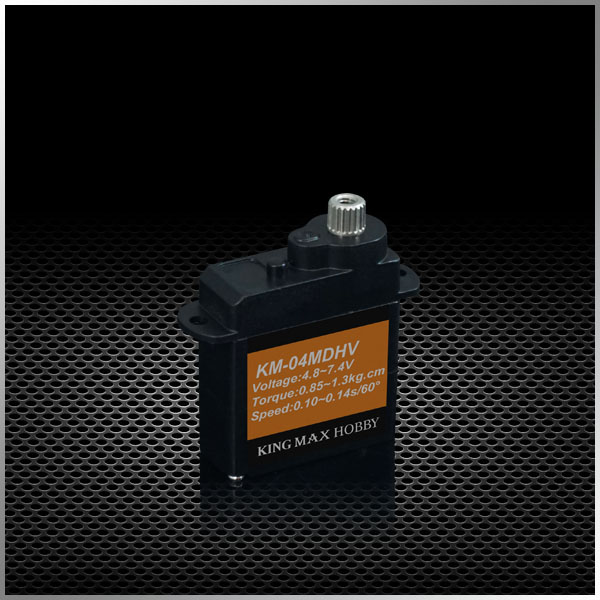

EATURE:
--The first practical micro servo
--High-precision metal gears for smooth action and durability
--Tiny gear clearance
--Good for CCPM
--Coreless motor
--Mature circuit design scheme,quality motors and electronic components makes the servo stable,accurate and reliable
SPECIFICATIONS:
Control System: +Pulse Width Control
Operating Temperature Range: -10 to + 60 degree
Operating Speed (4.8V): 0.14sec/60 degrees at no load
Operating Speed (6.0V): 0.12sec/60 degrees at no load
Stall Torque (4.8V): 0.85kg.cm (11.80 oz/in)
Stall Torque (6.0V): 1.30kg.cm (18.05 oz/in)
Potentiometer Drive: Direct Drive

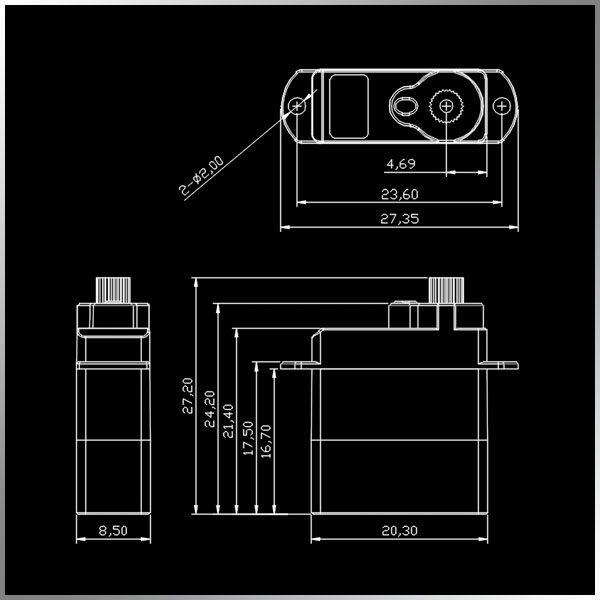

Dimensions: 20x8.5x21.5mm/0.78 x0.33x0.83in
Weight: 6g(0.21oz)
Connector Wire Length: JR185mm (7.21in)
Optional Accessories:

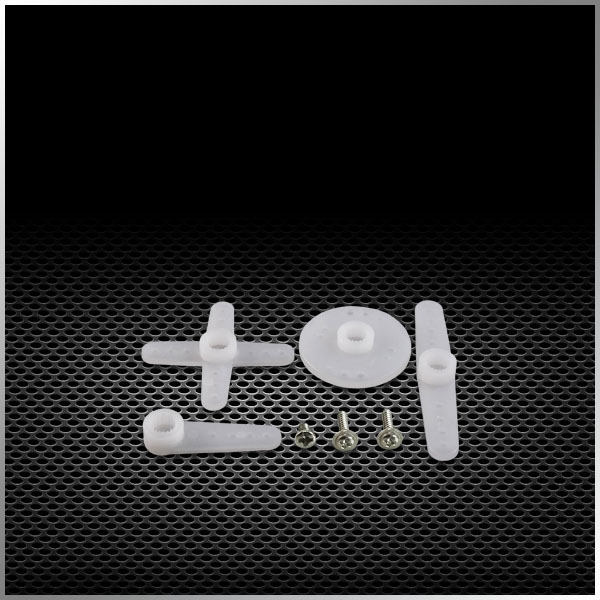

KM-04MDHV-001:Offered accessories
KM-04MDHV-002:1set of gearset, including gears, shafts(not include motor gear)
