FEATURE:

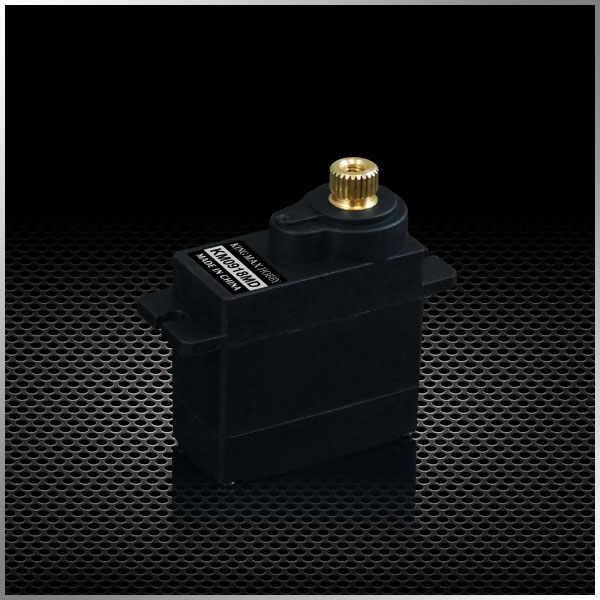

-- Programmable digital mini servo
-- High precision metal gears
-- High quality coreless motor
-- Super long working life
SPECIFICATIONS:
Operating Speed(5.0V):0.17sec/60degrees
Operating Speed(6.0V):0.14sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):6.0kg.cm(83.34oz/in)
Maximum working torque(7.4V):3.8kg.cm(52.78oz/in)
Rated working torque(5.0V):1.3kg.cm(18.05oz/in)
Rated working torque(6.0V):1.5kg.cm(20.83oz/in)
Rated working torque(7.4V):2.0kg.cm(27.78oz/in)
Rated working torque(8.4V):2.3kg.cm(31.94oz/in)
Dimensions:23.8*11.7*22.2mm/0.92X0.0.45X0.86in
Weight:14g(0.49oz)
Connector Wire Length:JR190mm(7.41in)
Optional Accessories:

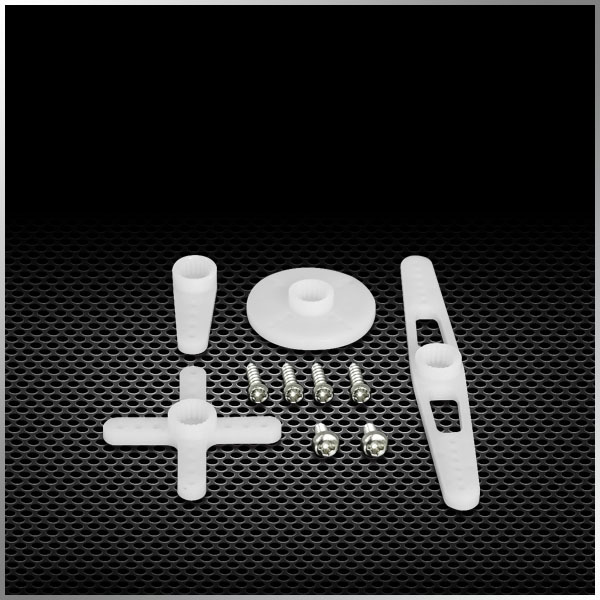

KM0918MD-001:Offered accessories
KM0918MD-002:1set of gearset, including gears, shafts and 1 ball bearings(not include motor gear)
