FEATURE:

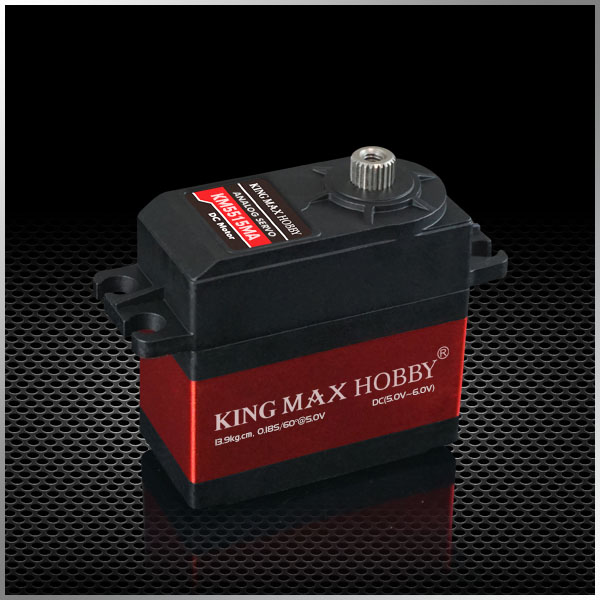

-- High performance analog standard servo

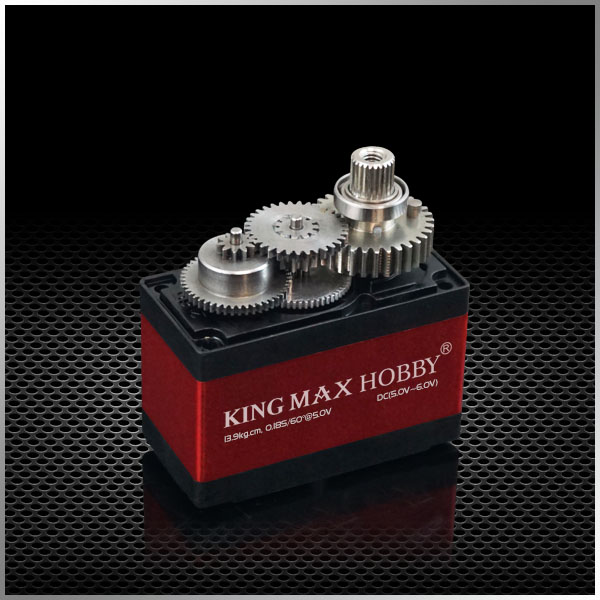

-- High-precision Taiwan-made metal gears( copper+ titamium)
-- CNC aluminium middle hull
-- High quality brushed motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed (5.0V): 0.18 sec/60 degrees
Operating Speed (6V): 0.16 sec/60 degrees
Stall Torque (5.0V): 14.25 kg.cm (197.93 oz/in)
Stall Torque (6V): 15.32 kg。cm (212.79 oz/in)
Dimensions: 40.5X20.2X38.9mm /1.59 X0.80X1.57in
Weight: 60g (2.12oz)
Connector Wire Length: JR 265 mm (10.43in)
Packing Detail:
Blister size: 113mmx79mmx25mm weight: 97g
Carton box size: 47x25x21cm 96sets/1CTN weight: 9.7kg
Optional Accessories:
KM5515MA-001:Offered accessories
KM5515MA-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
