FEATURE:
-- High performance digital standard servo

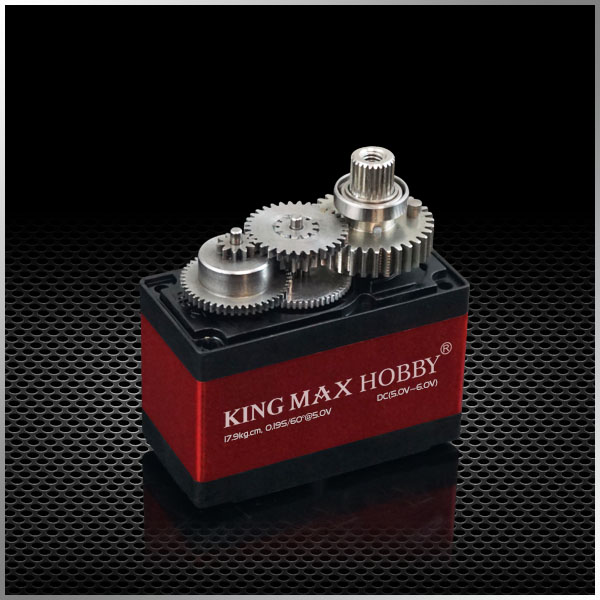

-- High-precision Taiwan-made metal gears
--Middle CNC aluminium case
-- High quality brushed motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed (5.0V): 0.19sec/60 degrees
Operating Speed (6.0V): 0.16 sec/60 degrees
Stall Torque (5.0V): 17.86 kg.cm (248.08oz/in)
Stall Torque (6.0V): 20.25 kg.cm (281.27oz/in)
Dimensions: 40.5X20.2X38.9mm /1.59 X0.80X1.57in
Weight: 60g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
Packing Detail:
Blister size: 113mmx79mmx25mm weight: 97g
Carton box size: 47x25x21cm 96sets/1CTN weight: 9.7kg
Optional Accessories:
KM5520MD-001:Offered accessories
KM5520MD-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
