FEATURE:
-- High performance programmable digital high voltage standard servo
-- High-precision steel gear
-- High quality coreless motor
-- Dual ball bearings
-- CNC aluminium middle hull
-- Good for CCPM
SPECIFICATIONS:
Operating Speed (6.0V): 0.11sec/60°
Operating Speed (7.4V): 0.09sec/60°
Stall Torque (6.0V): 11.6kg.cm (162.17oz/in)
Stall Torque (7.4V): 13.2kg.cm (184.54oz/in)
Dimensions: 40X20X36.5mm /1.59X0.80X1.42in
Weight: 61 g (2.15oz)
Connector/ Wire : 22AWG,JR265 mm (10.43in)
Packing Detail:
Blister size: 113mmx79mmx25mm weight: 98g
Carton box size: 47x25x21cm 96sets/1CTN weight: 9.8kg
Optional Accessories:
KM5514MDHV-001:Offered accessories

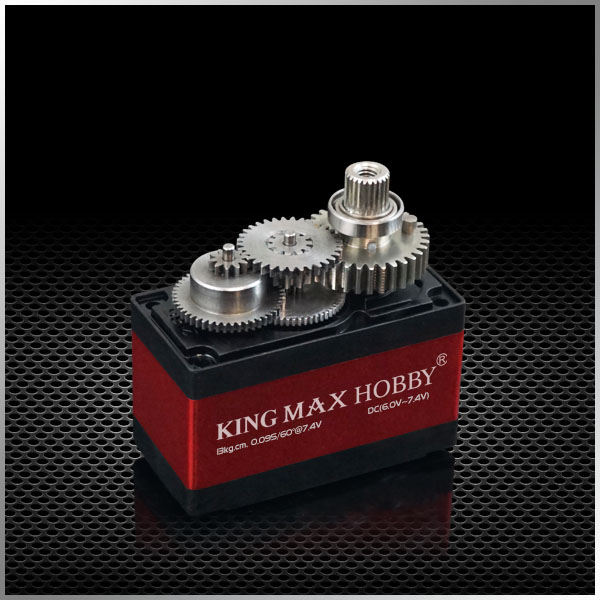

KM5514MDHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
