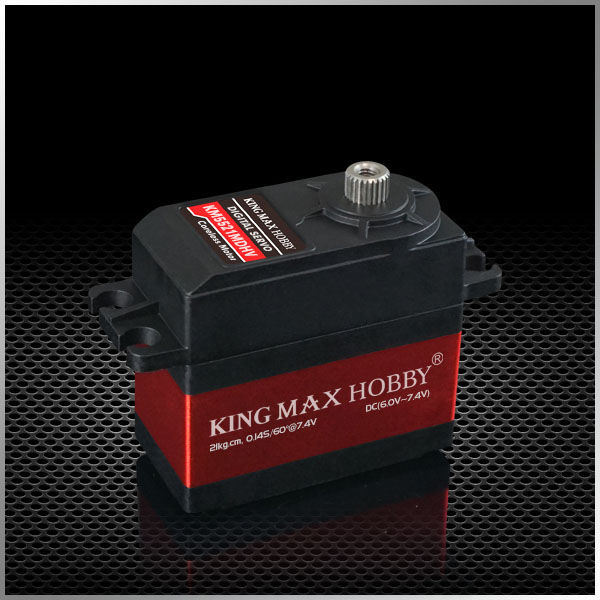

FEATURE:
-- High performance programmable digital high voltage standard servo

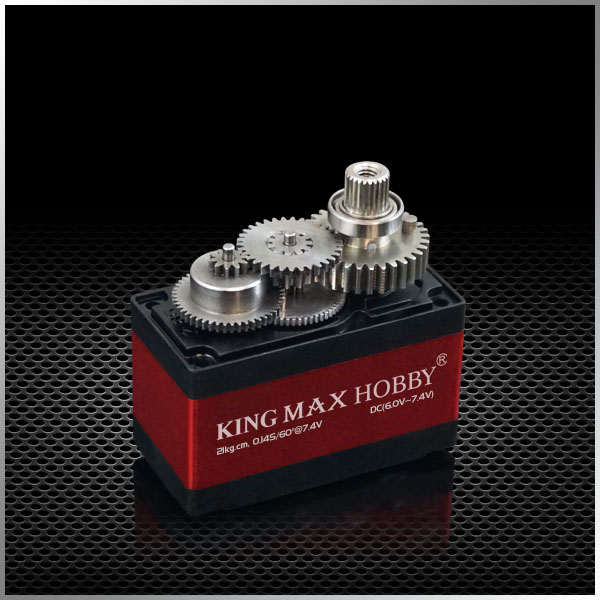

-- High-precision steel gear
-- High quality coreless motor
-- Dual ball bearings
-- CNC aluminium middle hull
-- Good for CCPM
SPECIFICATIONS:
Operating Speed (6.0V): 0.16sec/60°
Operating Speed (7.4V): 0.14sec/60°
Stall Torque (6.0V): 18.5kg.cm (258.63oz/in)
Stall Torque (7.4V): 21.3kg.cm (295.86oz/in)

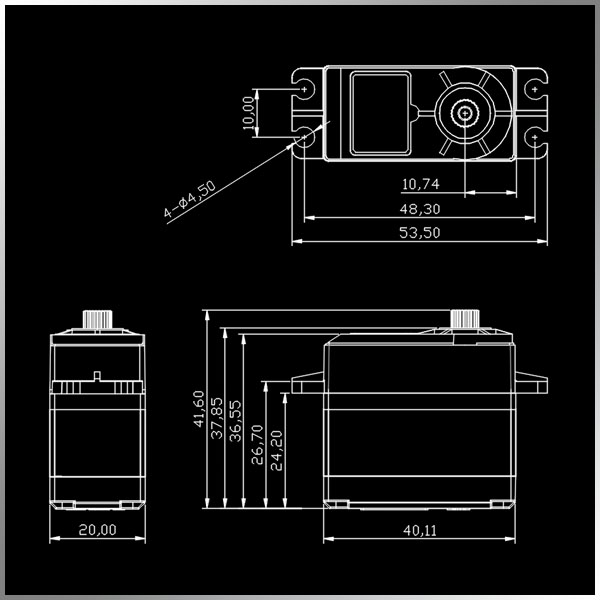

Dimensions:40X20X36.5mm/1.59X0.80X1.42in
Weight: 61g (2.15oz)
Connector/ Wire : 22AWG,JR265 mm (10.43in)
Packing Detail:

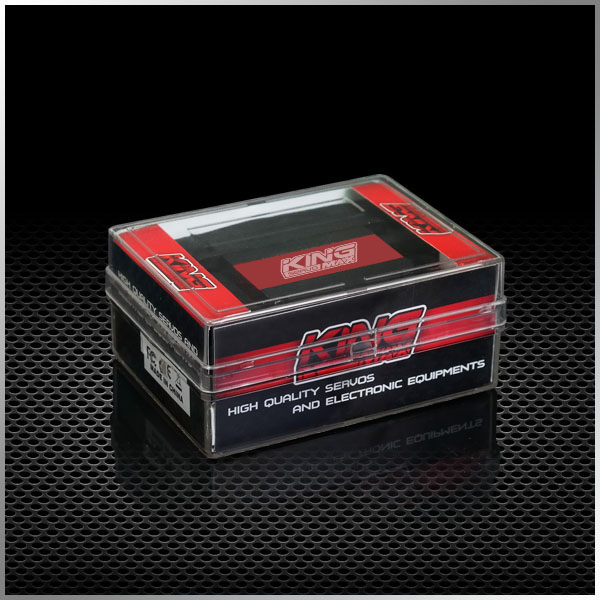

Blister size: 113mmx79mmx25mm weight: 98g
Carton box size: 47x25x21cm 96sets/1CTN weight:9.8kg
Optional Accessories:
KM5521MDHV-001:Offered accessories
KM5521MDHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
