FEATURE:

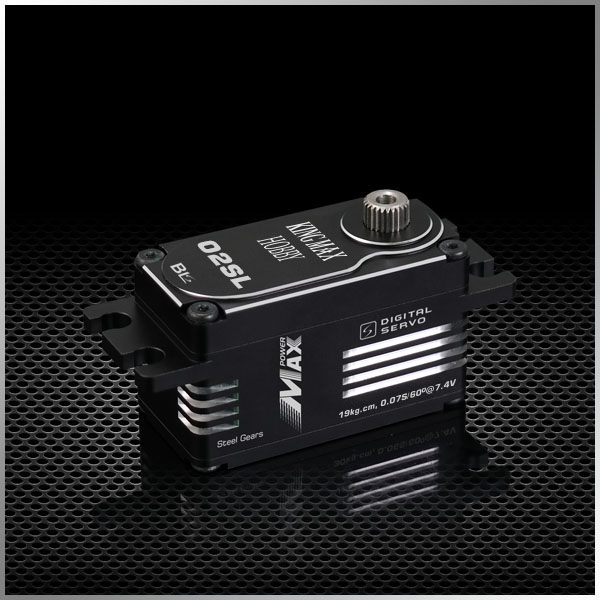

-- High performance, digital super low profile servo
-- Patent gear chain design,more stable and durable
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (5.0V): 0.11sec/60 degrees
Operating Speed (6.0V): 0.09sec/60 degrees
Operating Speed (7.4V): 0.07sec/60 degrees
Operating Speed (8.4V): 0.06sec/60 degrees
Stall Torque (5.0V): 14.0kg.cm (194.46oz/in)
Stall Torque (6.0V): 17.0kg.cm (236.13oz/in)
Stall Torque (7.4V): 19.0kg.cm (263.91oz/in)
Stall Torque (8.4V): 21.0kg.cm (291.69oz/in)
Dimensions: 40*20*25.5mm /1.56*0.78*0.99in
Weight: 56g(1.97oz)
Connector Wire Length: JR320mm (12.48in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 108g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:11.25kg
Optional Accessories:
BLS02SL-001:Offered accessories
BLS02SL-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
