PATENT PRODUCTS
COUNTERFEITING WILL BE HELD LIABLE
PETENT NO. ZL201822045200.5
FEATURE:

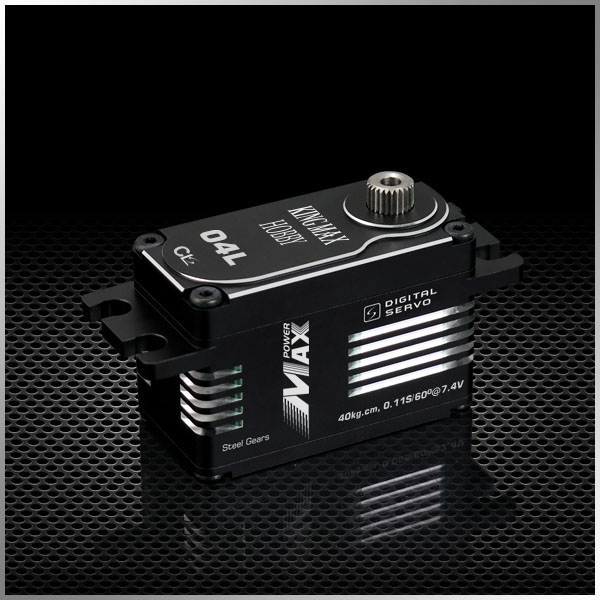

-- High performance, digital low profile servo
-- Patent gear chain design,more stable and durable
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (5.0V): 0.17sec/60 degrees
Operating Speed (6.0V): 0.14sec/60 degrees
Operating Speed (7.4V): 0.11sec/60 degrees
Operating Speed (8.4V): 0.10sec/60 degrees
Stall Torque (5.0V): 29.0kg.cm (402.81oz/in)
Stall Torque (6.0V): 33.0kg.cm (458.37oz/in)
Stall Torque (7.4V): 40.0kg.cm (555.60oz/in)
Stall Torque (8.4V): 45.0kg.cm (625.05oz/in)
Dimensions: 40*20*28.5mm /1.56*0.78*1.11in
Weight: 64g(2.26oz)
Connector Wire Length: JR320 mm (12.48in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 112g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:11.65kg
Optional Accessories:
CLS04L-001:Offered accessories
CLS04L-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
