FEATURE:
-- High performance,Multivoltage digital mini servo
-- High quality DC motor
-- Middle CNC aluminium case
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (5.0V): 0.21sec/60 degrees
Operating Speed (6.0V): 0.16sec/60 degrees
Operating Speed (7.4V): 0.14sec/60 degrees
Operating Speed (8.4V): 0.13sec/60 degrees
Stall Torque (5.0V): 3.6kg.cm (50.00oz/in)
Stall Torque (6.0V): 4.3kg.cm (59.72oz/in)
Stall Torque (7.4V): 5.7kg.cm (79.17oz/in)
Stall Torque (8.4V): 6.1kg.cm (84.72oz/in)
Dimensions: 29*13.6*30mm /1.13*0.53*0.1.17in
Weight: 26.6g(0.93oz)
Connector Wire Length: JR320 mm (12.48in)
Packing Detail:
Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 79g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Cross weight:8.4kg
Optional Accessories:
DCS01MP-001:Offered accessories

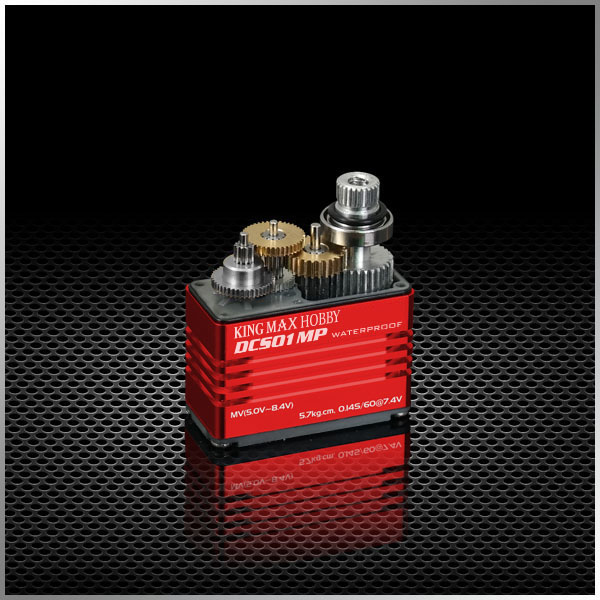

DCS01MP-002:1set of gearset(need to pay), including gears, shafts and 2 ball bearings(not include motor gear)
