FEATURE:
-- High performance,Multivoltage digital mini servo
-- High-precision metal gears
-- High quality brushed motor
-- Ball bearing
-- Ultra high torque
SPECIFICATIONS:
Operating Speed (5.0V): 0.24sec/60 degrees
Operating Speed (6.0V): 0.19sec/60 degrees
Operating Speed (7.4V): 0.15sec/60 degrees
Operating Speed (8.4V): 0.13sec/60 degrees
Stall Torque (5.0V): 3.90kg.cm (54.17oz/in)
Stall Torque (6.0V): 4.80kg.cm (66.67oz/in)
Stall Torque (7.4V): 5.80kg.cm (80.56oz/in)
Stall Torque (8.4V): 6.80kg.cm (94.45oz/in)

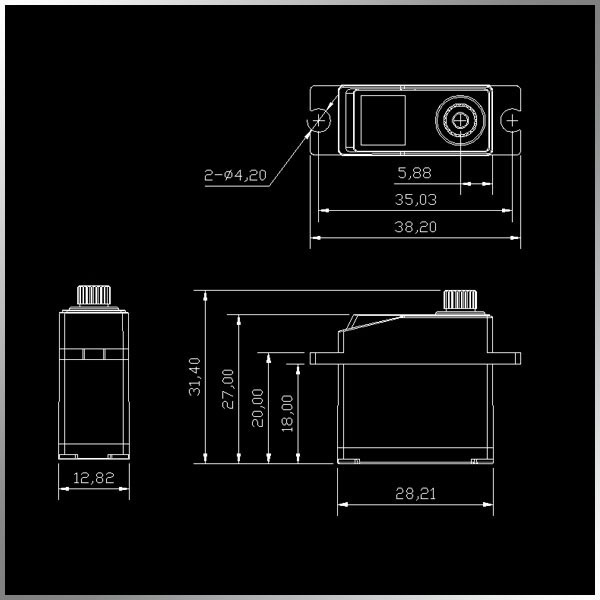

Dimensions: 28.1*12.9*27mm/1.09*0.50*1.05in
Weight: 20g(0.70oz)
Connector Wire Length: JR320mm(12.48in)
Optional Accessories:
KM1703MDHV-001:Offered accessories

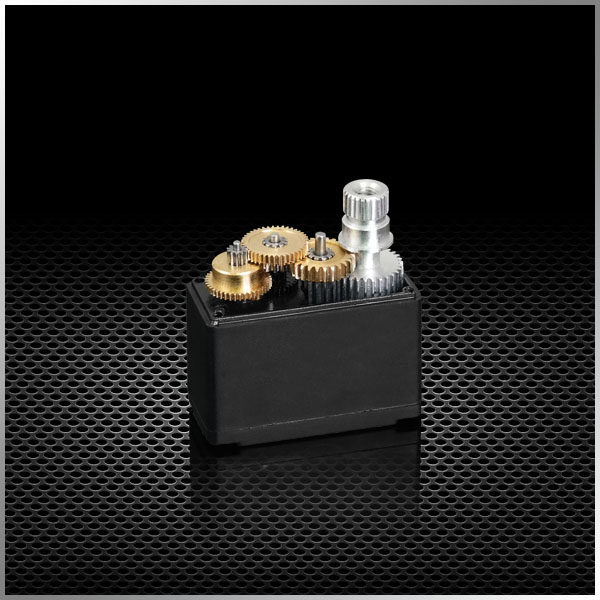

KM1703MDHV-002:1set of gearset(need to pay), including gears, shafts and 2 ball bearings(not include motor gear)
Life testing with loading weight
