FEATURE:
-- High performance, digital multivoltage wing servo
-- High-precision metal gears with hard anodizing
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
--8mm ultra-thin thickness
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed (5.0V): 0.13sec/60 degrees
Operating Speed (6.0V): 0.10sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (5.0V): 2.8kg.cm (38.89oz/in)
Stall Torque (6.0V): 3.2kg.cm (44.44oz/in)
Stall Torque (7.4V): 4.0kg.cm (55.56oz/in)
Stall Torque (8.4V): 4.5kg.cm (62.50oz/in)

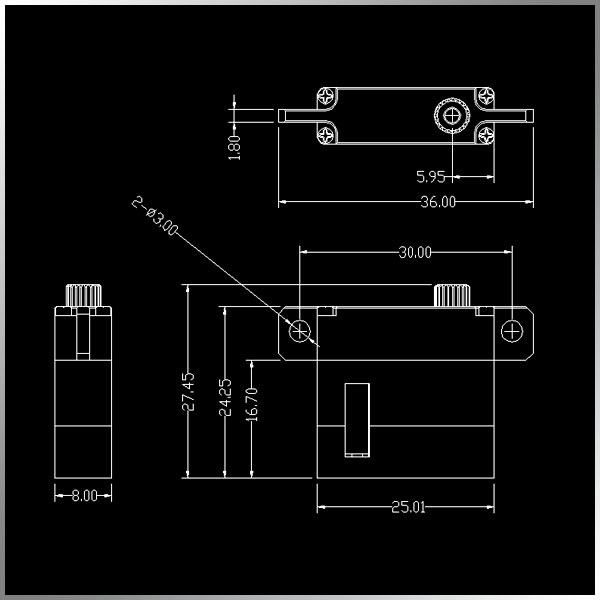

Dimensions: 25X8X24.8mm/0.97X0.31X0.96in
Weight: 16.7g(0.58oz)
Connector Wire Length: JR300 mm (11.81in)
Packing Detail:

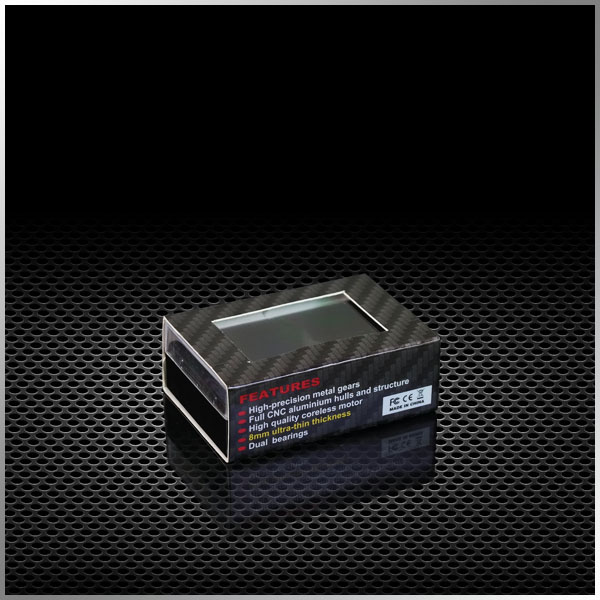

Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 62.5g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:6.2kg
Optional Accessories:

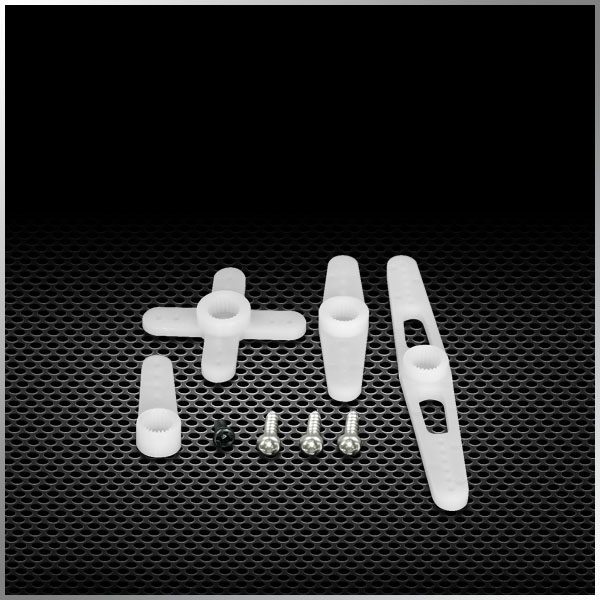

CLS0408W-001:Offered accessories
CLS0408W-002:1set of gearset(need to pay), including gears, shafts and 2 ball bearings(not include motor gear)
