FEATURE:

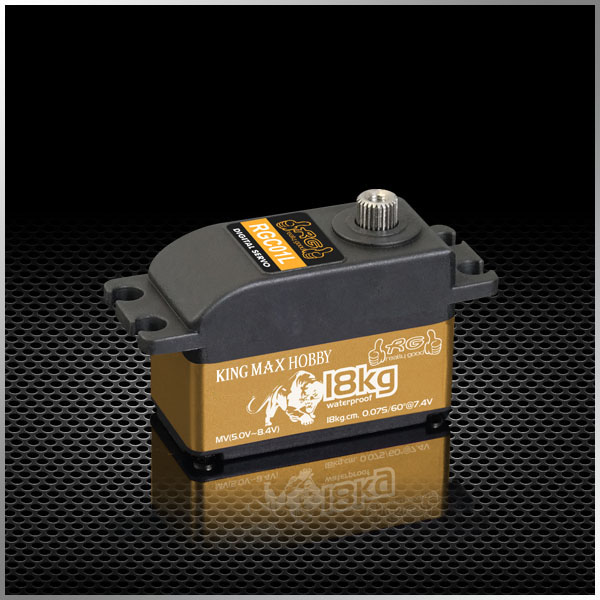

-- Programmable high performance digital low profile servo

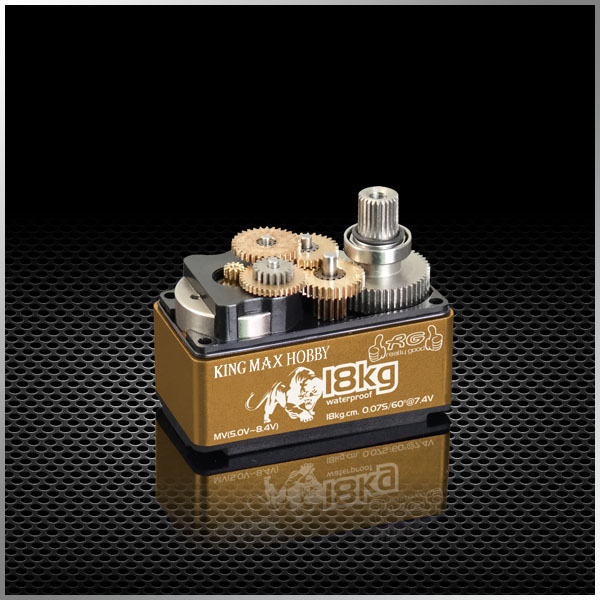

-- High precision metal gears
-- High quality coreless motor
-- Middle CNC aluminium case
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed (5.0V):0.11sec/60 degrees
Operating Speed (6.0V):0.09sec/60 degrees
Operating Speed (7.4V):0.07sec/60 degrees
Operating Speed (8.4V):0.06sec/60 degrees
Stall Torque (5.0V):13.0kg.cm (180.57oz/in)
Stall Torque (6.0V):15.4kg.cm (213.90oz/in)
Stall Torque (7.4V):18.0kg.cm (250.02oz/in)
Stall Torque (8.4V):19.0kg.cm (263.91oz/in)
Dimensions:40X20X27.9mm /1.56X0.78X1.08in
Weight:58g (2.04oz)
Connector Wire Length:JR300 mm (11.70in)
Packing Detail:
Transparent plastic box size: 83.5x63.5x37.5mm weight: 106g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight: 11kg
Optional Accessories:
RGC01L-001:Offered accessories
RGC01L-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
