FEATURE:
-- High performance,mini digital wing servo
-- High precision matal gears(copper+titanium)
-- High quality brushed motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed (5.0V): 0.16 sec/60 degrees
Operating Speed (6.0V): 0.13 sec/60 degrees
Operating Speed (7.4V): 0.11 sec/60 degrees
Stall Torque (5.0V): 7.20 kg.cm (100.01oz/in)
Stall Torque (6.0V): 8.0 kg.cm (111.12oz/in)
Stall Torque (7.4V): 9.7 kg.cm (134.73oz/in)

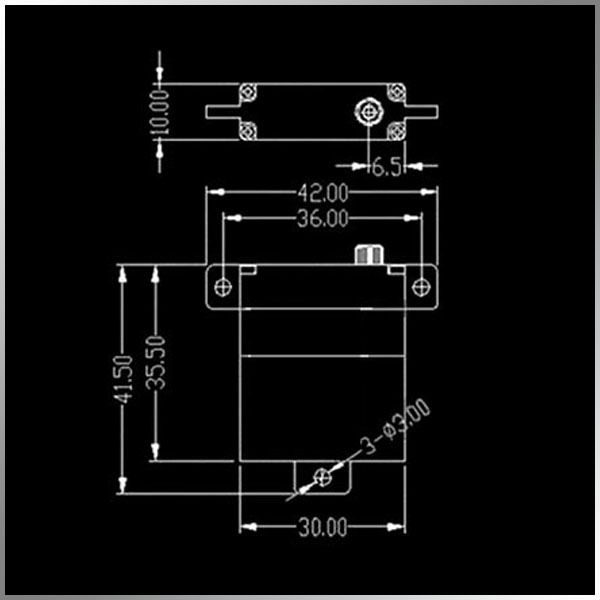

Dimensions: 30X10X35 mm /1.18 X0.39X1.37 in
Weight: 28.4 g (1.11oz)
Connector Wire Length: JR 180 mm (7.09in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 75g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:8.0kg
Optional Accessories:
KM2607MD-001:Offered accessories
KM2607MD-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
