FEATURE:
-- High performance digital standard servo
-- High-precision metal gears
-- High quality DC motor
-- Middle CNC aluminium case
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.19sec/60 degrees
Operating Speed(6.0V):0.16sec/60 degrees
Operating Speed(7.4V):0.13sec/60 degrees
Operating Speed(8.4V):0.12sec/60 degrees
Stall Torque(5.0V):14.5kg.cm (201.40oz/in)
Stall Torque(6.0V):16.8kg.cm (233.35oz/in)
Stall Torque(7.4V):20.0kg.cm (277.80oz/in)
Stall Torque(8.4V):21.5kg.cm (298.63oz/in)
Dimensions:40*20*41.1mm/1.56X0.78X1.6in
Weight:67.9g(2.39oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparency plastic box size:83.5mmx63.5mmx37.5mm weight: 121.7g
Carton box size:43x26.5x20.5cm 100sets/1CTN Cross weight:12.6kg
Optional Accessories:
RGD01S-001:Offered accessaries

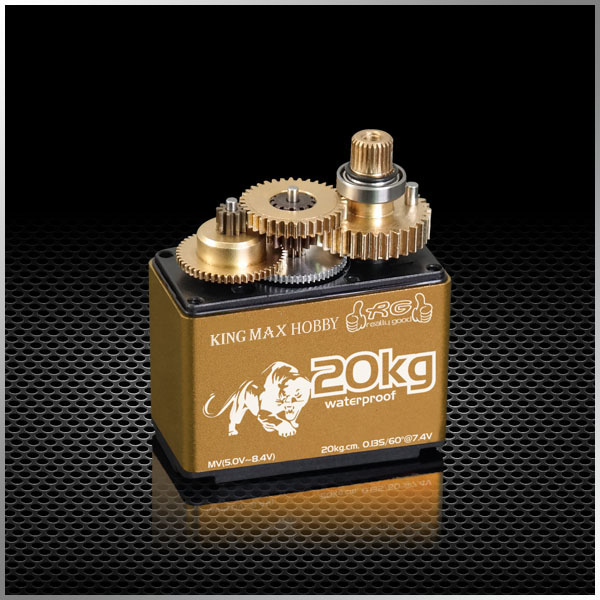

RGD01S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
