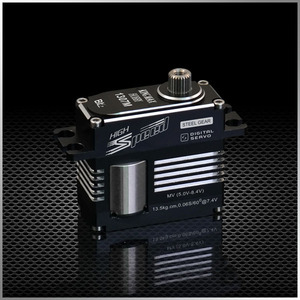

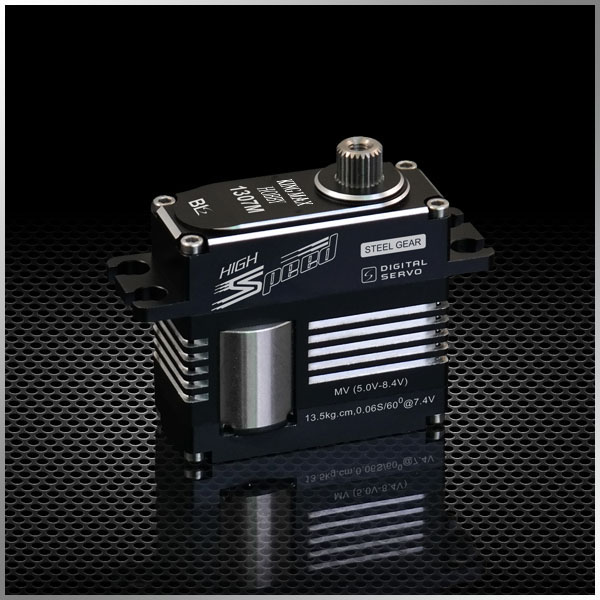

FEATURE:
-- High performance digital mini servo

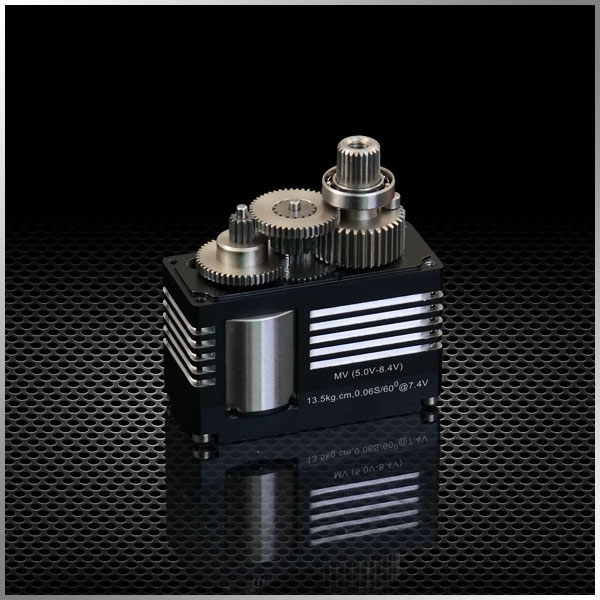

-- High-precision steel gear
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Super long life
-- Suitable for 500 class helicopters, 70E fixed wing aircraft, and Turbojets.etc
SPECIFICATIONS:
Operating Speed (5.0V): 0.10sec/60 degrees
Operating Speed (6.0V): 0.07sec/60 degrees
Operating Speed (7.4V): 0.06sec/60 degrees
Operating Speed (8.4V): 0.05sec/60 degrees
Stall Torque (5.0V): 10.2kg.cm (141.67oz/in)
Stall Torque (6.0V): 11.3kg.cm (156.95oz/in)
Stall Torque (7.4V): 13.5kg.cm (187.51oz/in)
Stall Torque (8.4V): 15.0kg.cm (208.35oz/in)

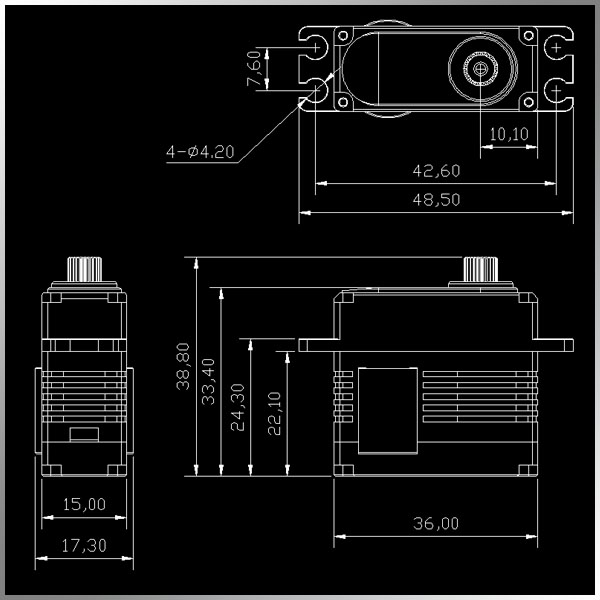

Dimensions: 36*15*33.4mm /1.4*0.58*1.30in
Weight: 49g(1.72oz)
Connector Wire Length: JR225 mm (8.77in)
Packing Detail:
Transparent plastic box size:83.5mmx63.5mmx37.5mm weight: 96g
Carton box size:43x26.5x20.5cm 100sets/1CTN Gross weight:10kg
Optional Accessories:
BLS1307M-001:Offered accessories
BLS1307M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
