FEATURE:

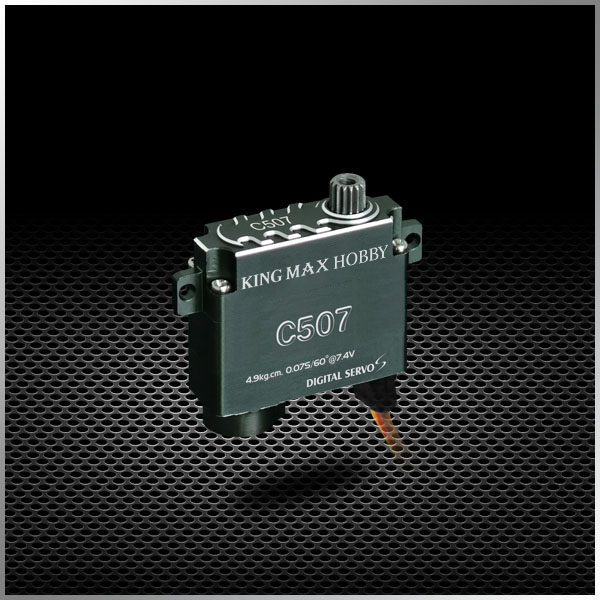

-- High performance, digital multivoltage micro wing servo
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- 8mm ultra-thin thickness
-- Dual ball bearing
SPECIFICATIONS:
Operating Speed(3.5V):0.15sec/60degrees
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):4.9kg.cm(68.06oz/in)
Rated working torque(3.5V):0.9kg.cm(12.50oz/in)
Rated working torque(5.0V):1.8kg.cm(25.00oz/in)
Rated working torque(6.0V):2.0kg.cm(27.78oz/in)
Rated working torque(7.4V):2.3kg.cm(31.94oz/in)
Rated working torque(8.4V):2.5kg.cm(34.72oz/in)

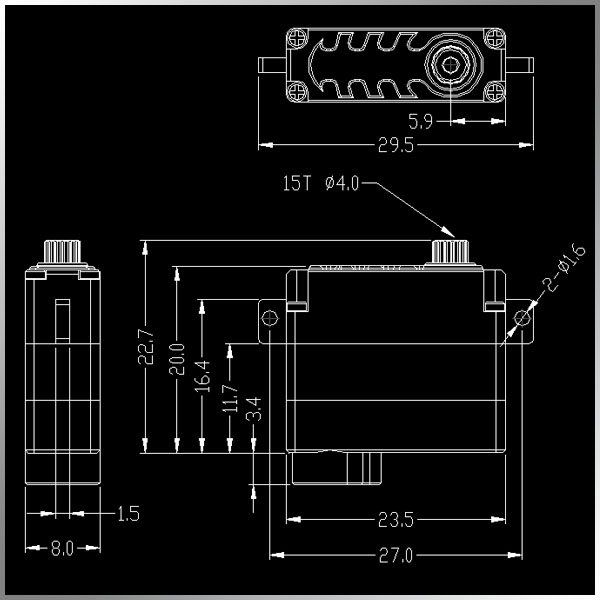

Dimensions:23.5*8*20mm /0.91X0.31X0.78in
Weight:11g(0.38oz)
Connector Wire Length:JR180mm(7.02in)
Optional Accessories:
C507-001:Offered accessories
C507-002:1set of gearset, including gears, shafts(not include motor gear)
