FEATURE:
-- High performance digital mini servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.14sec/60degrees
Operating Speed(6.0V):0.11sec/60degrees
Operating Speed(7.4V):0.09sec/60degrees
Operating Speed(8.4V):0.08sec/60degrees
Stall Torque(7.4V):22kg.cm(305.58oz/in)
Maximum working torque(7.4V):12.0kg.cm(166.68oz/in)
Rated working torque(5.0V):5.00kg.cm(69.45oz/in)
Rated working torque(6.0V):6.00kg.cm(83.34oz/in)
Rated working torque(7.4V):7.00kg.cm(97.23oz/in)
Rated working torque(8.4V):7.50kg.cm(104.17oz/in)

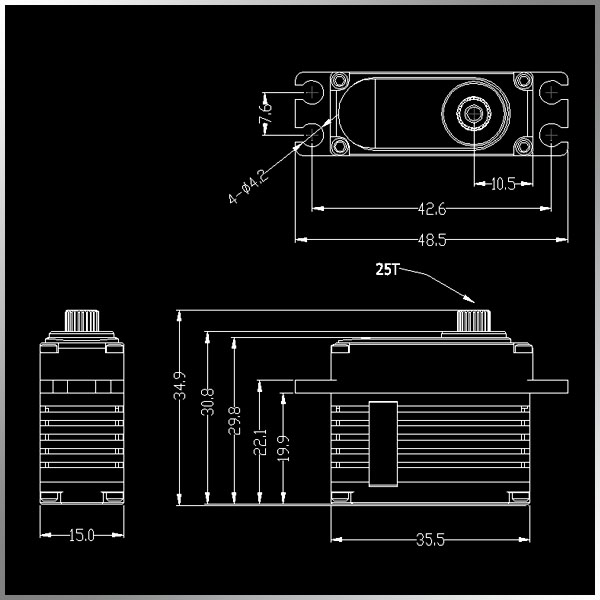

Dimensions:35.5*15*29.7mm/1.38*0.58*1.15in
Weight:43g(1.51oz)
Connector Wire Length:JR250mm(9.75n)
Packing Detail:
Transparent plastic box size:83.5mmx63.5mmx37.5mm weight:90g
Carton box size:43x26.5x20.5cm 100sets/1CTN Gross weight:9.45kg
Optional Accessories:
CLS2209M-001:Offered accessories

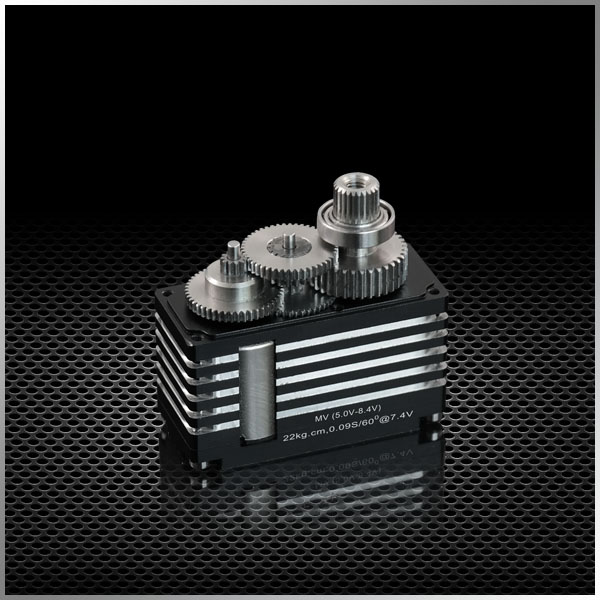

CLS2209M-002:1set of gearset, including gears, shafts(not include motor gear)
