FEATURE:
-- High performance, digital high voltage wing servo
-- High-precision metal gears with hard anodizing
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
--8mm ultra-thin thickness
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.15sec/60degrees
Operating Speed(6.0V):0.12sec/60degrees
Operating Speed(7.4V):0.10sec/60degrees
Operating Speed(8.4V):0.09sec/60degrees
Stall torque(7.4V):9.00kg.cm(125.01oz/in)
Maximum working torque(7.4V):6.40kg.cm(88.89oz/in)
Rated working torque(5.0V):2.0kg.cm(27.78oz/in)
Rated working torque(6.0V):2.5kg.cm(34.72oz/in)
Rated working torque(7.4V):3.0kg.cm(41.67oz/in)
Rated working torque(8.4V):3.5kg.cm(48.61oz/in)

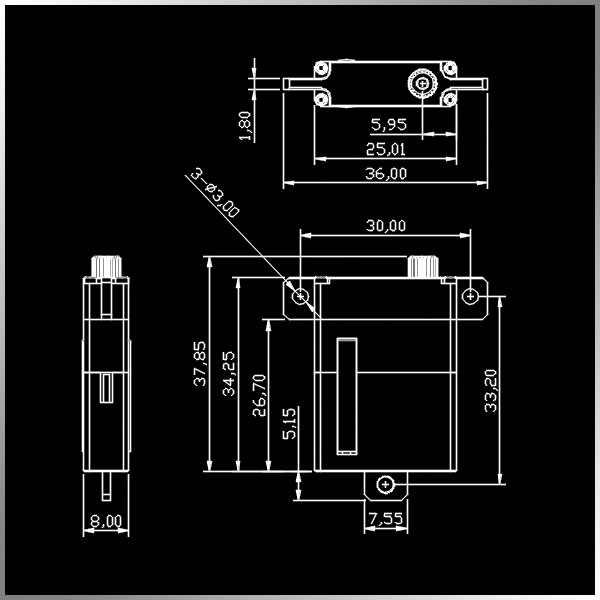

Dimensions:25*8*34.3mm/0.97X0.31X1.33in
Weight:21g(0.74oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 66.8g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7.13kg
Optional Accessories:
CLS0512W-001:Offered accessories
CLS0512W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
