FEATURE:
-- High performance, digital standard servo
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Durable steel gears
-- Dual ball bearings
-- Super long life
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.11sec/60degrees
Operating Speed(6.0V):0.09sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):53.0kg.cm(736.17oz/in)
Rated working torque(5.0V):20.0kg.cm(277.80oz/in)
Rated working torque(6.0V):26.4kg.cm(366.69oz/in)
Rated working torque(7.4V):31.0kg.cm(430.59oz/in)
Rated working torque(8.4V):35.0kg.cm(486.15oz/in)

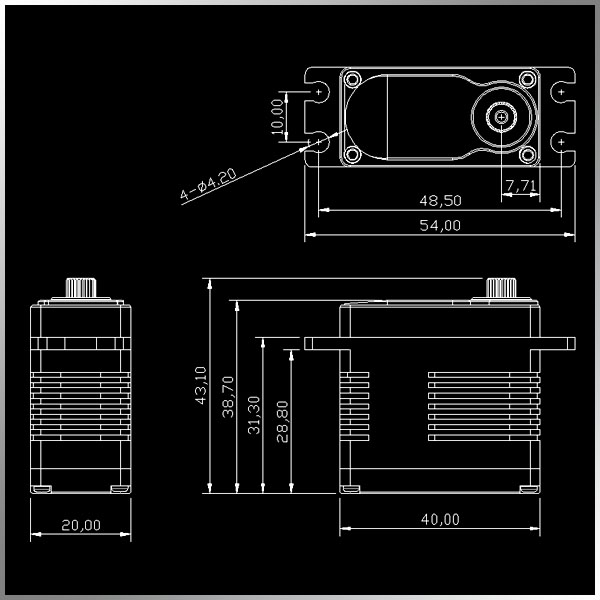

Dimensions(L*W*H):40X20X38.7mm/1.56X0.78X1.5in
Weight:91.5g(3.22oz)
Connector Wire Length:JR220mm(8.58in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 143.5g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:14.8kg
Optional Accessories:
K7S-001:Offered accessories
K7S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
TESTING VIDEO CLIP
