FEATURE:
-- High performance digital mini servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.09sec/60degrees
Operating Speed(6.0V):0.07sec/60degrees
Operating Speed(7.4V):0.06sec/60degrees
Operating Speed(8.4V):0.05sec/60degrees
Stall torque(7.4V):18.0kg.cm(250.02oz/in)
Rated working torque(5.0V):4.6kg.cm(63.89oz/in)
Rated working torque(6.0V):5.5kg.cm(76.39oz/in)
Rated working torque(7.4V):6.0kg.cm(83.34oz/in)
Rated working torque(8.4V):6.6kg.cm(91.67oz/in)

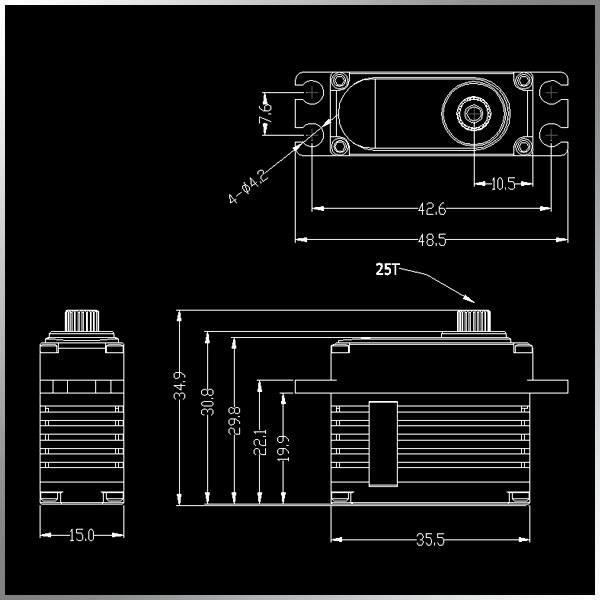

Dimensions(L*W*H):35.5*15*29.7mm/1.38*0.58*1.15in
Weight:43g(1.51oz)
Connector Wire Length:JR250mm(9.75n)
Packing Detail:
Transparent plastic box size:83.5mmx63.5mmx37.5mm weight:90g
Carton box size:43x26.5x20.5cm 100sets/1CTN Gross weight:9.45kg
Optional Accessories:
CLS1806M-001:Offered accessories
CLS1806M-002:1set of gearset, including gears, shafts(not include motor gear)
