FEATURE:
-- High performance, digital multivoltage micro wing servo
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- 6mm ultra-thin thickness
SPECIFICATIONS:
Operating Speed(3.5V):0.17sec/60degrees
Operating Speed(5.0V):0.13sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):2.50kg.cm(34.72oz/in)
Maximum working torque(7.4V):1.0kg.cm(13.89oz/in)
Rated working torque(3.5V):0.45kg.cm(6.25oz/in)
Rated working torque(5.0V):0.65kg.cm(9.02oz/in)
Rated working torque(6.0V):0.77kg.cm(10.69oz/in)
Rated working torque(7.4V):0.96kg.cm(13.33oz/in)
Rated working torque(8.4V):1.1kg.cm(15.27oz/in)

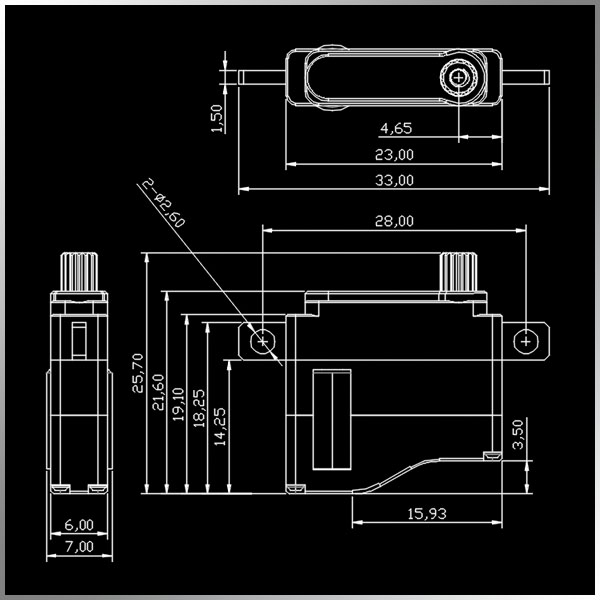

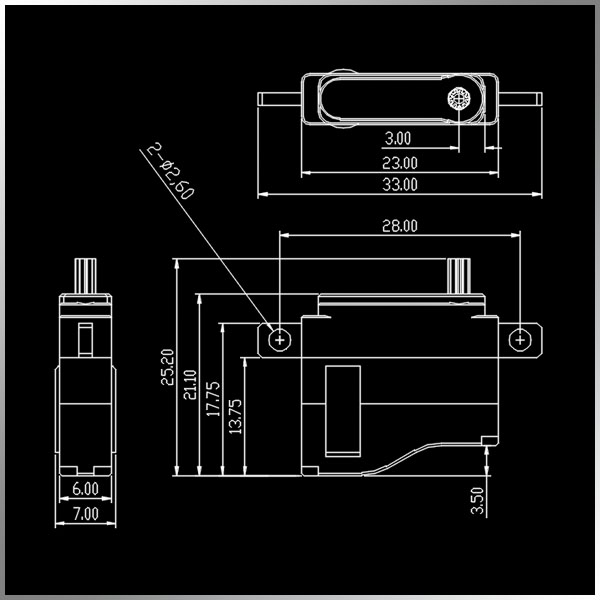

Dimensions:23*6*21.6mm /0.90X0.23X0.84in
Weight:9g(0.31oz)
Connector Wire Length:JR180mm(7.02in)
Optional Accessories:

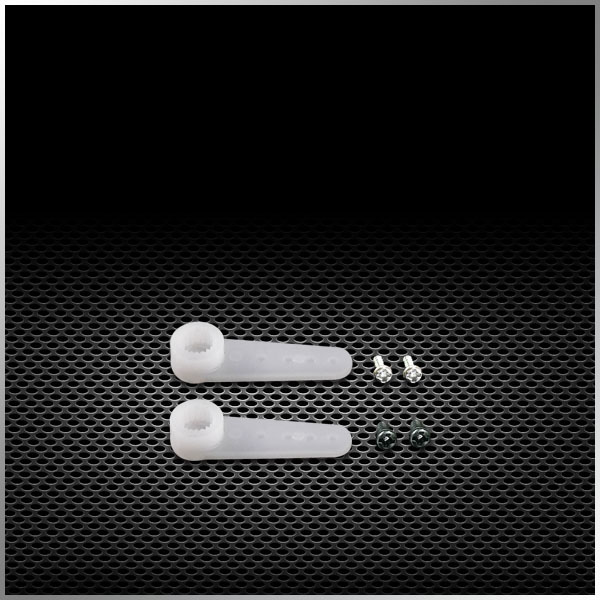

C308H-001:Offered accessories
C308H-002:1set of gearset,including gears,shafts and 2 ball bearings(not include motor gear)
