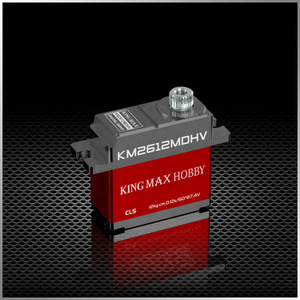

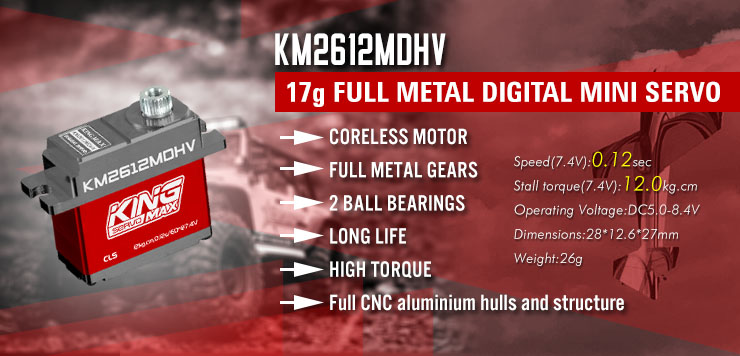

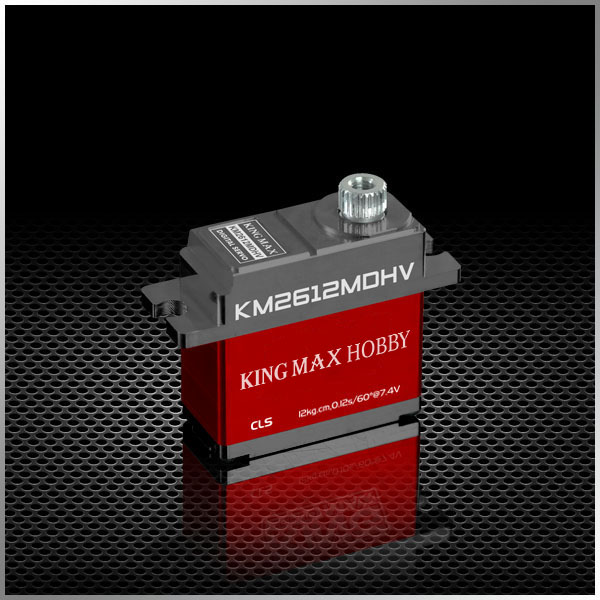

FEATURE:
-- High performance digital mini servo
-- High-precision metal gears
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.18sec/60degrees
Operating Speed(6.0V):0.15sec/60degrees
Operating Speed(7.4V):0.12sec/60degrees
Operating Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):12.0kg.cm(166.68oz/in)
Maximum working torque(7.4V):7.0kg.cm(97.23oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.5kg.cm(48.61oz/in)
Rated working torque(7.4V):4.0kg.cm(55.56oz/in)
Rated working torque(8.4V):4.5kg.cm(62.50oz/in)

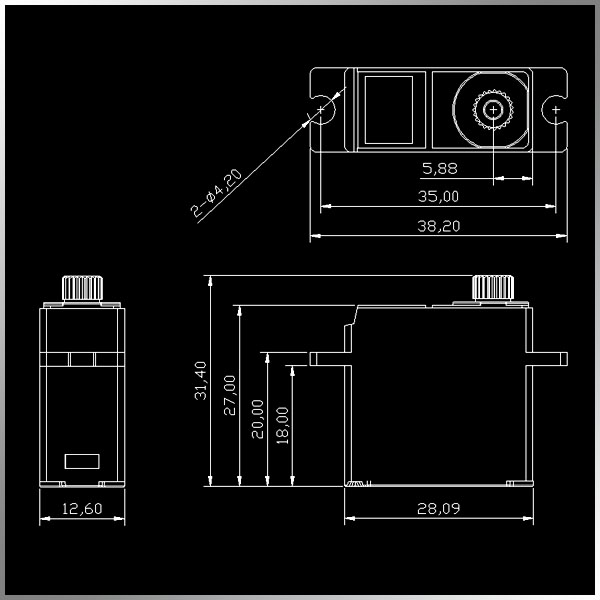

Dimensions:28*12.6*27mm/1.09X0.49X1.05in
Weight:26g(0.91oz)
Connector Wire Length:JR310mm(12.09in)
Packing Detail:

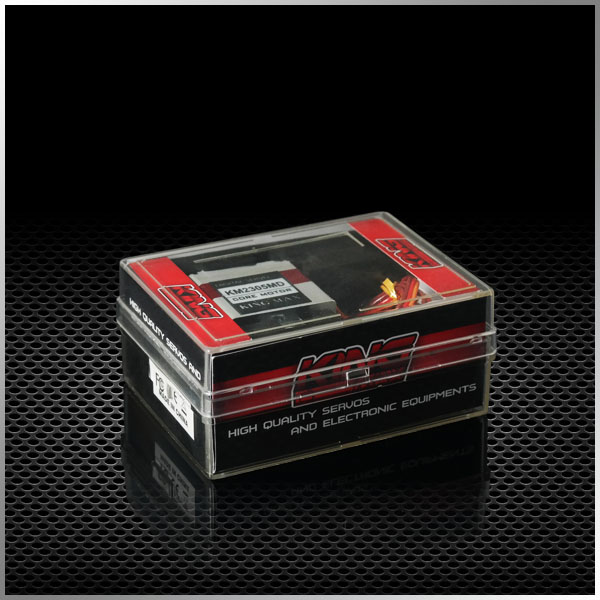

Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 74g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7.9kg
Optional Accessories:
KM2612MDHV-001:Offered accessories

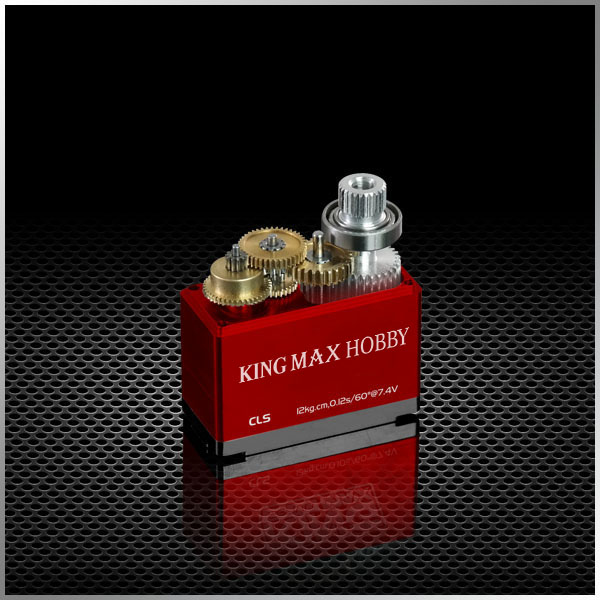

KM2613MDHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
