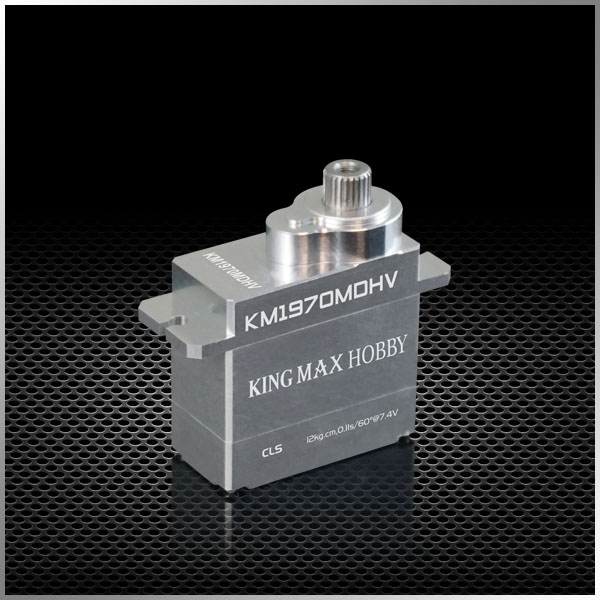

FEATURE:
-- High performance digital mini servo
-- High-precision steel gears
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Super long working life
SPECIFICATIONS:
Operating Speed(5.0V):0.17sec/60degrees
Operating Speed(6.0V):0.14sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):12kg.cm(166.68oz/in)
Maximum working torque(7.4V):6.0kg.cm(83.34oz/in)
Rated working torque(5.0V):2.7kg.cm(37.50oz/in)
Rated working torque(6.0V):3.0kg.cm(41.67oz/in)
Rated working torque(7.4V):4.0kg.cm(55.56oz/in)
Rated working torque(8.4V):4.2kg.cm(58.33oz/in)

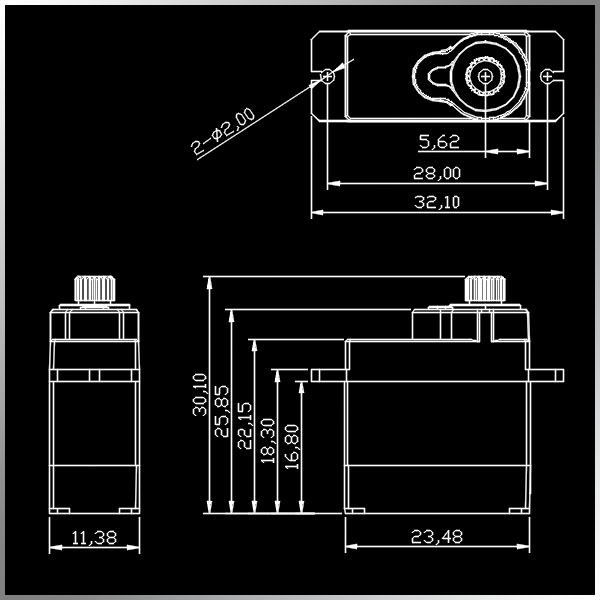

Dimensions:23.5*11.5*22.5mm/0.91X0.44X0.87in
Weight:18g(0.63oz)
Connector Wire Length:JR190mm(7.41in)
Optional Accessories:
KM1970MDHV-001:Offered accessories
KM1970MDHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
