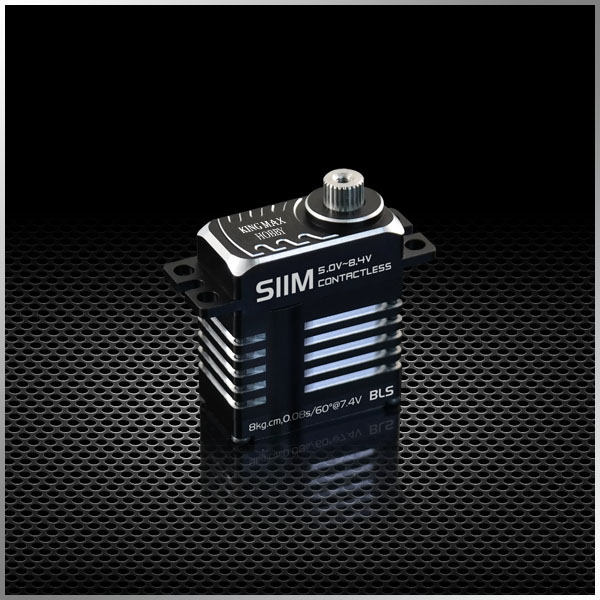

FEATURE:
-- Install latest magnetic sensor positioner internally
-- High performance digital mini servo

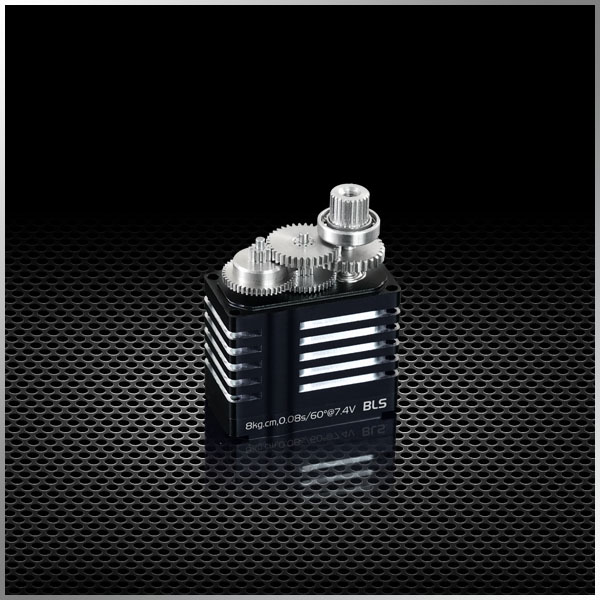

-- High-precision steel gear
-- High quality brushless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.13sec/60degrees
Operating Speed(6.0V):0.11sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):8.00kg.cm(111.12oz/in)
Maximum working torque(7.4V):6.00kg.cm(83.34oz/in)
Rated working torque(5.0V):3.00kg.cm(41.67oz/in)
Rated working torque(6.0V):4.00kg.cm(55.56oz/in)
Rated working torque(7.4V):4.80kg.cm(66.67oz/in)
Rated working torque(8.4V):5.50kg.cm(76.39oz/in)
Dimensions:23*12*26.5mm/0.89X0.46X1.03in
Weight:21g(0.74oz)
Connector Wire Length:JR185mm(7.21in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 63.5g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7kg
Optional Accessories:
S11M-001:Offered accessories
S11M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
