FEATURE:
-- High performance digital mini servo
-- High-precision metal gear
-- High quality coreless motor
-- Super long life
SPECIFICATIONS:
Operating Speed(3.5V):0.08sec/60degrees
Operating Speed(5.0V):0.06sec/60degrees
Operating Speed(6.0V):0.05sec/60degrees
Stall torque(5.0V):1.0kg.cm(13.89oz/in)
Maximum working torque(5.0V):0.6kg.cm(8.33oz/in)
Rated working torque(3.5V):0.2kg.cm(2.77oz/in)
Rated working torque(5.0V):0.35kg.cm(4.86oz/in)
Rated working torque(6.0V):0.4kg.cm(5.55oz/in)

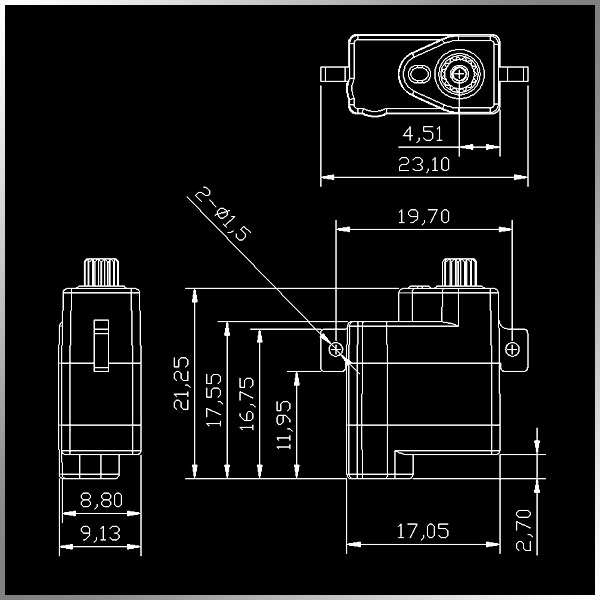

Dimensions:17*8.8*17.5mm/0.66X0.34X0.68in
Weight:5g(0.17oz)
Connector Wire Length:JR95mm(3.70in)

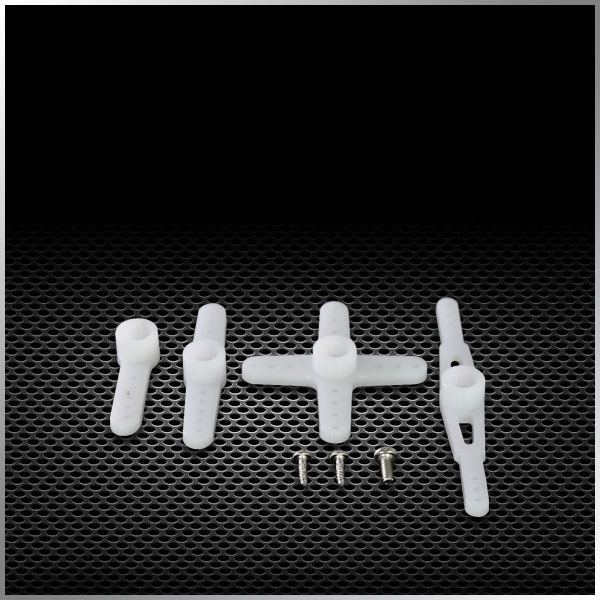

Optional Accessories:
C106-001:Offered accessories
C106-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
