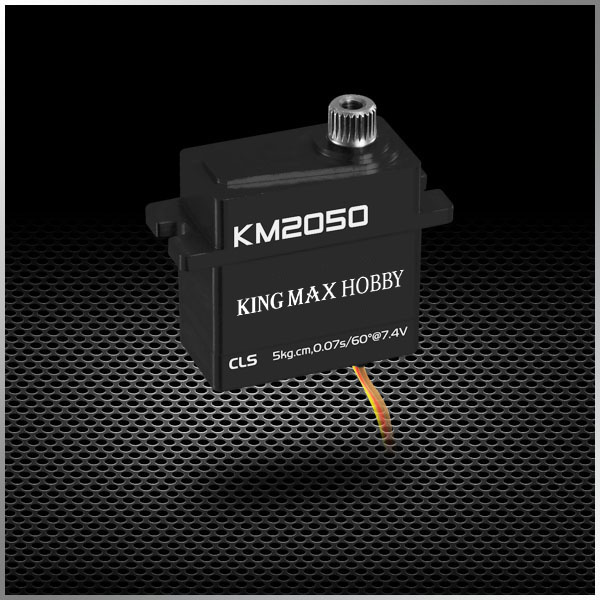

FEATURE:
-- High performance digital mini servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- ideal for replacing Traxxas 2065 servo
-- Waterproof
-- Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):5.0kg.cm(69.45oz/in)
Maximum working torque(7.4V):2.6kg.cm(36.11oz/in)
Rated working torque(5.0V):1.2kg.cm(16.66oz/in)
Rated working torque(6.0V):1.4kg.cm(19.44oz/in)
Rated working torque(7.4V):1.5kg.cm(20.83oz/in)
Rated working torque(8.4V):1.6kg.cm(22.22oz/in)

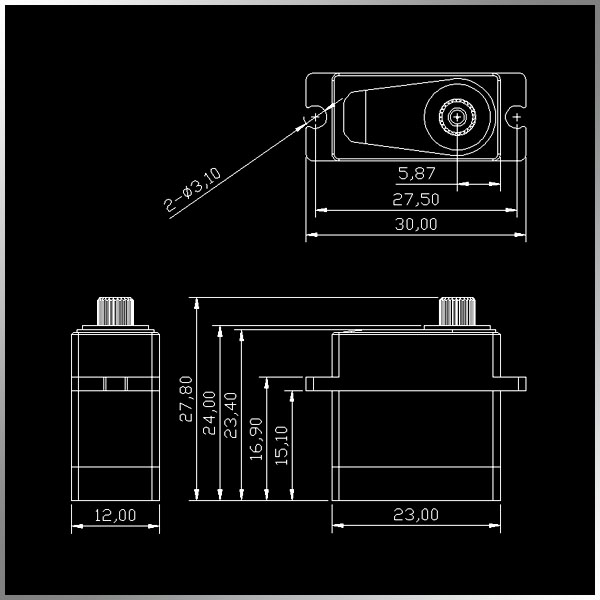

Dimensions:23*12*23.4mm/0.89X0.46X0.91in
Weight:20g(0.70oz)
Connector Wire Length:JR220mm(8.58in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 80g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:8.45kg
Optional Accessories:

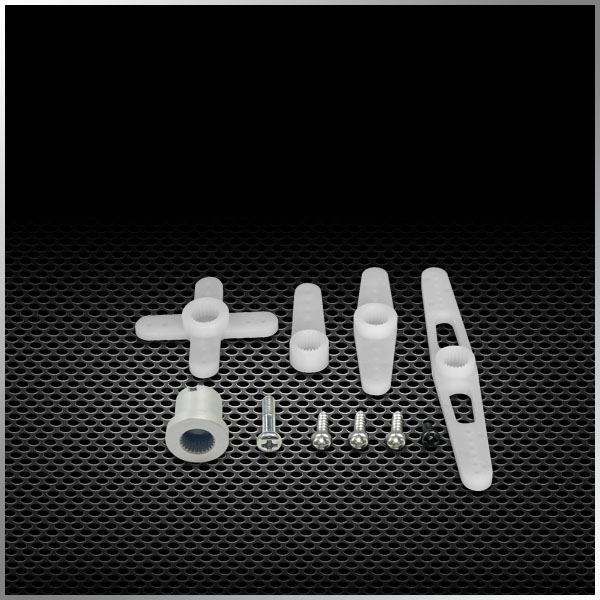

KM2050-001:Offered accessories
KM2050-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
